Home /Products/Filling Machine/Automatic Piston Filling Machine 6 Head 100-1000mL Shampoo Detergent Bottle Filler

Automatic Piston Filling Machine 6 Head 100-1000mL Shampoo Detergent Bottle Filler

1
MOQ
$13,000-17,000
Price
Automatic Piston Filling Machine 6 Head 100-1000mL Shampoo Detergent Bottle Filler
Features Gallery Product Description Chat Now
Features
Specifications
Application: Food, Chemical, Cosmetic
Packaging Type: Cartons, Others
Packaging Material: Wood
Automatic Grade: Automatic
Driven Type: Pneumatic
Voltage: 220 V
Dimension(l*w*h): 75.00cm * 40.00cm * 165.00cm
Warranty: 1 Year
Key Selling Points: High Productivity
Filling Material: Milk, Oil, Juice, Liquid
Filling Accuracy: ±1%
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Core Components: Engine, Other
Filling Nozzle: 2, 1, 4, 10
After-sales Service Provided: Video Technical Support, Field Installation, Commissioning And Training, Online Support
Weight (KG): 500
Filling Volume: 5-1000ml
Brand: Cosmati
Product Name: 6 Heads Piston Filling Machine
Production Capacity: 20-40BPM
Filling Range: 100-1000ml
Application: Liquid
Dimension(l*w*h): 2000 X 1100 X 2200mm
Degree Of Automation: Automatic
Material: 316L+304 Stainless Steel
Bottle: Glass Bottle/plastic Bottle
Highlight:

Automatic Piston Filling Machine

,

Shampoo Detergent Filling Machine

,

Shampoo Bottle Filler
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Cosmati
Certification: CE
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 7 work days
Payment Terms: TT
Supply Ability: 10000 set
Product Description

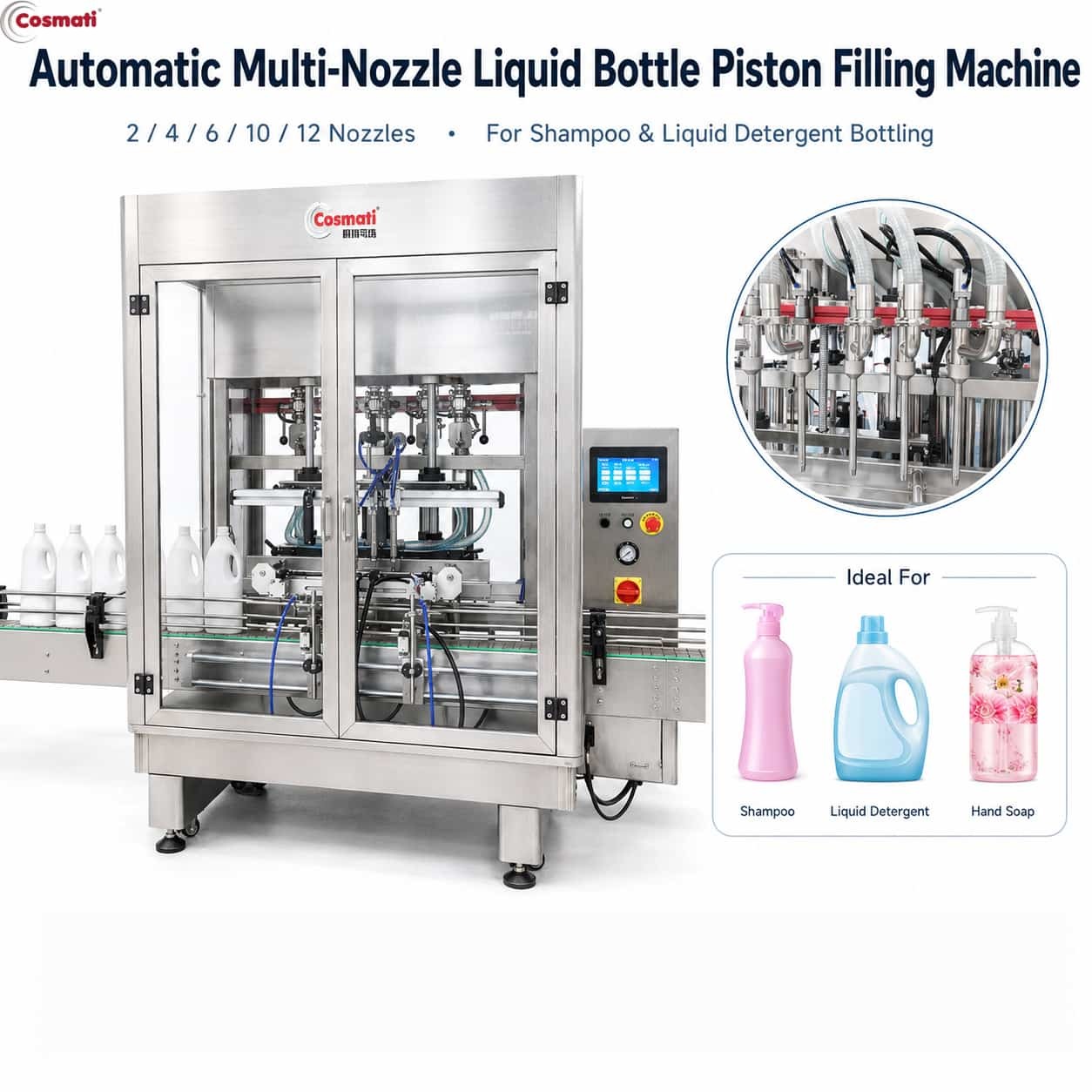

Automatic 2/4/6/10/12 Nozzles Liquid Bottle Piston Filling Machine Shampoo Liquid Detergent Bottling Line Liquid Filling Machine

Features

1. It adopts piston filling, automatic bottle feeding, automatic filling, and automatic feeding control system.
2.500ml volumetric flask Capacity up to: 30-40pcs/min (data parameters: take 25°C, viscosity 10pa.s water as the test standard).
3. It adopts a separate photoelectricity for feeding and returning bottles, the upper feeding and the mechanical structure without one-way valve, the servo motor drives the piston cylinder to make the filling accuracy more accurate, and it is more convenient to adjust the filling volume, ensuring the efficient and stable continuous operation of the machine. Production.
4. The designed adjustment mechanism is as large as possible (including standard 114mm conveyor belt, touch screen adjustment, single-head fine-tuning device, etc.) to adapt to the rapid replacement of various bottle types.
6. Beautiful appearance, reasonable structure, simple maintenance and disassembly, no need for special tools.
5. Adopt human-friendly touch-type man-machine interface, fully consider the ability of various quality personnel to accept machinery, and add guided adjustment modules, fault query modules, etc. to the man-machine interface to facilitate operation and maintenance.
Model
Machine Size
Filling Speed
Filling Nozzels
CM-ZDGZ
L2000 xW1100 xH2200mm
30-40pcs/min
(500ml water bottles)
2/4/6/8/10/12 pcs
(Can be customized)
Filling Accuracy
Working Pressure
Material
Usage
±1%
8kg/cm2
SUS316L/304
Filling shampoo, lotion, liquid soap, detergent, low viscosity liquid, conditioner, hair care liquid, etc.
Details

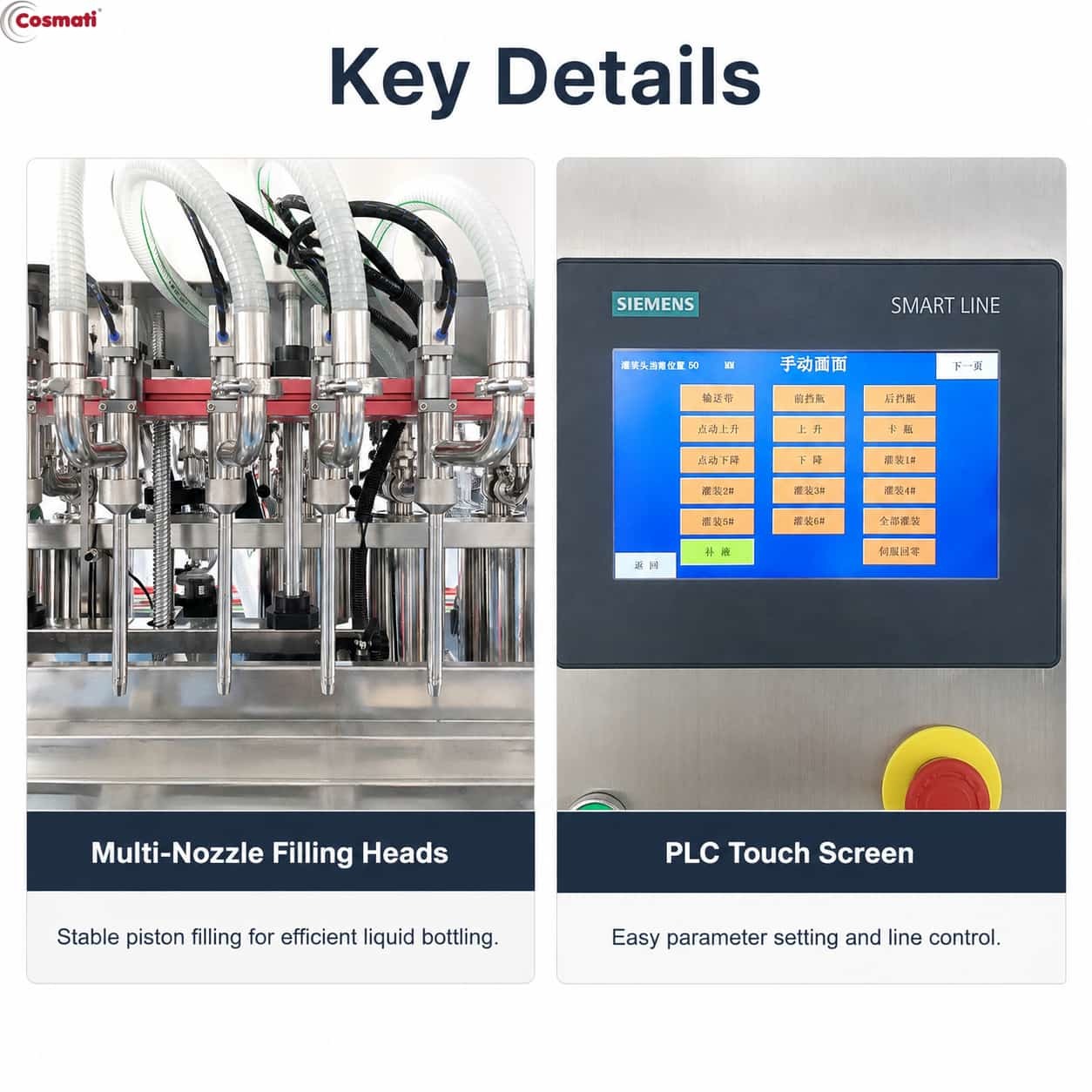

Filling nozzle
It's made of stainless steel 316l, the nozzles can be lifted. We can customize the quantity of the nozzles
Piston
Adopts piston filling method, which is suitable for filling gel, cream, shampoo, etc
PLC touch screen
PLC adopts Weinview from Taiwan, we can also customize it into or other brand
Bottle sensor
Adopts SICK brand from Germany
Factory profile
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0
Engineer case
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2
Automatic Piston Filling Machine 6 Head 100-1000mL Shampoo Detergent Bottle Filler
Trade show participation
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4
Packaging & shipping specifications
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5
Application
Automatic Piston Filling Machine 6 Head 100-1000mL Shampoo Detergent Bottle Filler

FAQ

Q1: What products can this automatic filling machine handle?
A: It is suitable for shampoo, liquid detergent, liquid soap, lotion, body wash and other liquid or semi-viscous products.

Q2: How many filling heads does the current machine have?
A: The current reference configuration uses 6 filling heads, allowing six bottles to be filled simultaneously.

Q3: Can the number of filling nozzles be customized?
A: Yes. Different multi-head configurations can be selected according to required production capacity and bottle size.

Q4: What is the filling volume range?
A: The current reference filling range is approximately 100–1000 mL. Other filling ranges can be configured by selecting the appropriate piston system.

Q5: Can one machine cover all volumes from 5 mL to 1000 mL?
A: Not necessarily. Different filling ranges may require different piston cylinders or filling configurations. The actual minimum and maximum filling volumes should be confirmed before ordering.
