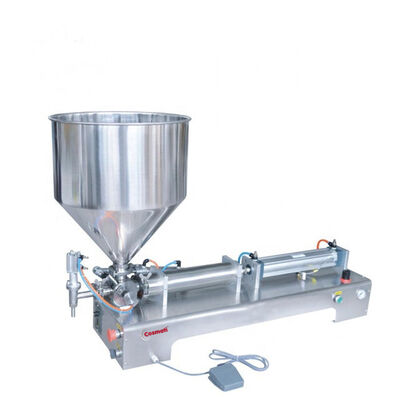

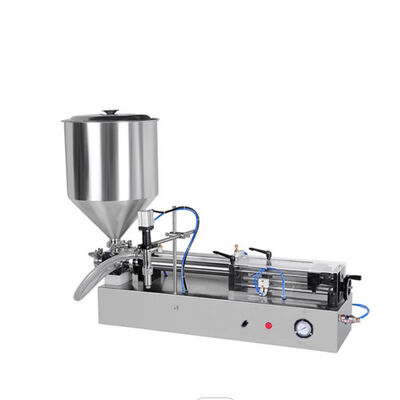

Semi-automatic honey oil shampoo lotion water juice gel hand sanitizer bottle liquid filling machine for plastic bottle
![]()
Feature:
1. Simple structure, convenient maintenance and reliable drive.
2. Imported cylinders and pneumatic components ensure the reliability of the machine.
3. High measurement accuracy, no dripping phenomenon.
4. The filling speed is fast and can be filled automatically and continuously.
5. Imported stainless steel material, polished inside and outside, in line with GMP standards.
6. Feeding method: ordinary gravity type.
7. Control method: full pneumatic control.
Technical Parameter:
| Model | Filling Volume | Filling Speed | Pressure Supply |
| CM-GT-5 | 5-60ml | 0-45bot/min | 0.2-0.6Mpa |
| CM-GT-10 | 10-120ml | 0-35bot/min | 0.2-0.6Mpa |
| CM-GT-25 | 25-250ml | 0-30bot/min | 0.2-0.6Mpa |
| CM-GT-50 | 50-500ml | 0-30bot/min | 0.2-0.6Mpa |
| CN-GT-100 | 100-1000ml | 0-25bot/min | 0.2-0.6Mpa |
| CM-GT-250 | 250-2500ml | 0-18bot/min | 0.2-0.6Mpa |
| CM-GT-500 | 500-5000ml | 0-12bot/min | 0.2-0.6Mpa |
FAQ:
1. What products can this semi-automatic filling machine handle?
This machine is suitable for compatible honey, lotion, shampoo, gel, hand sanitizer, oil and other liquid or semi-viscous products.
2. Is this machine suitable for paste filling?
Yes. It is designed for compatible paste and viscous liquid filling, depending on the viscosity and selected piston configuration.
3. Can it fill honey?
Yes. Honey and similar viscous materials can be processed when the piston, valve and filling nozzle are properly matched to the product.
4. Can it fill lotion and cosmetic cream?
Yes. Compatible lotion, light cream, cosmetic gel and other personal-care products can be filled with the appropriate configuration.
5. Can it fill shampoo and hand sanitizer gel?
Yes. It can be used for compatible shampoo, hand wash and hand sanitizer gel, depending on product viscosity and foaming characteristics.
