Home /Products/Filling Machine/Magnetic Pump Filling Machine Perfume Essential Oil Desktop Dual Head Filler

Magnetic Pump Filling Machine Perfume Essential Oil Desktop Dual Head Filler

1
MOQ
$500
Price
Magnetic Pump Filling Machine Perfume Essential Oil Desktop Dual Head Filler
Features Gallery Product Description Chat Now
Features
Specifications
Application: Food, Chemical
Packaging Type: Case
Packaging Material: Wood
Automatic Grade: Semi-Automatic
Driven Type: Electric
Voltage: 220v
Dimension(l*w*h): 440*330*330mm(17.32*12.99*12.99in)
Warranty: 1 Year
Key Selling Points: High Productivity
Filling Material: Beer, Milk, Water, Oil, Juice
Filling Accuracy: 99%
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Core Components: Pump
Filling Nozzle: 2
After-sales Service Provided: Online Support
Weight (KG): 13
Filling Volume: 200mL, 100mL
Product Name: Semi-automatic Shampoo Lotion Bottle Liquid Filling Machine
Keywords: Semiauto Liquid Filling Machine
Packing Size: 460*350*350mm
Filling Accuracy: ±1%
Degree Of Automation: Semi-automatic
Flow Capacity: 7L/min
Filling Nozzle: Customized
Weight: About 10 KG
Packing Type: Cartons+ Wooden Packaging
Packing Weight: 13kg
Highlight:

Perfume Essential Oil Filling Machine

,

Dual Head Filling Machine

,

Desktop Perfume Filler
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Cosmati
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 7 work days
Payment Terms: TT
Supply Ability: 10000 set
Product Description
Small Dose 1 2 3 4 5 6 Nozzles Magnetic Pump Semi Automatic Desktop Water Bottle Filler Liquid Car Perfume Filling Machine

Introduction

1. This kind of filling machine is applied to fill highly viscous liquids with magnetic gear pump metering and conveying system.
2. The filling tubing is made of oxygen, acid, alkali, and corrosion-resistant materials and therefore the filling machine can fill all kinds of liquids with strong oxidizing properties, acid and alkali, and corrosivity, such as oil, alcohols, benzene liquid, oxydols and detergents and so on. There are small pumps and big pump fillers.
3. The small pump filler can be designed as four filling heads model, and the big pump filler can be designed as a double head model.
Features

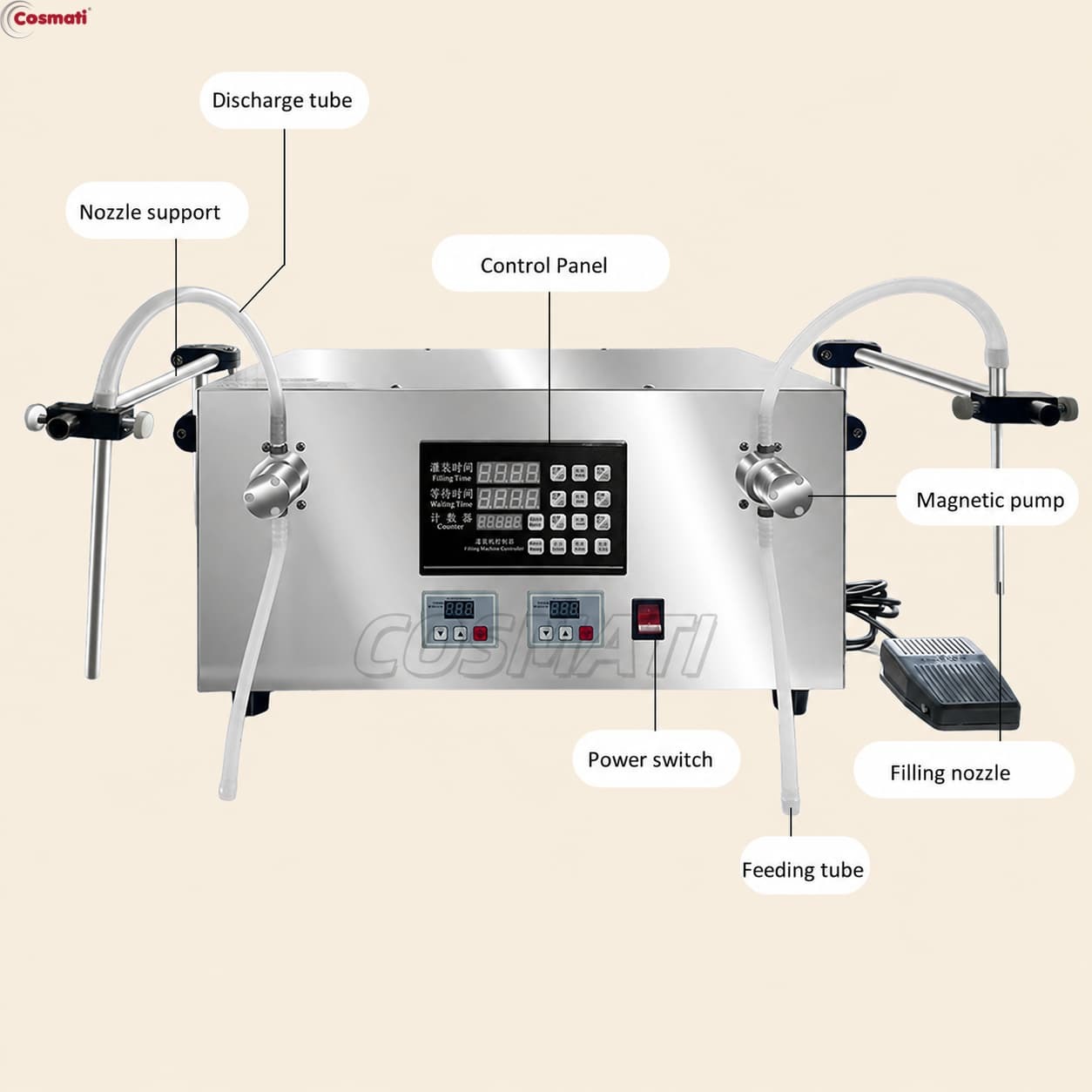

1. The gear pump is driven by magnetic force and the pump and motor are shaftless connections so as to avoid motor failure caused by the broken or leaking shaft seal or the high load of the pump.
2. The filling accuracy can achieve±0.1ml when filling 10ml liquid, so ithase high accuracy.
3. The filling capacity is from10ml-500ml(small pump), adjustable.

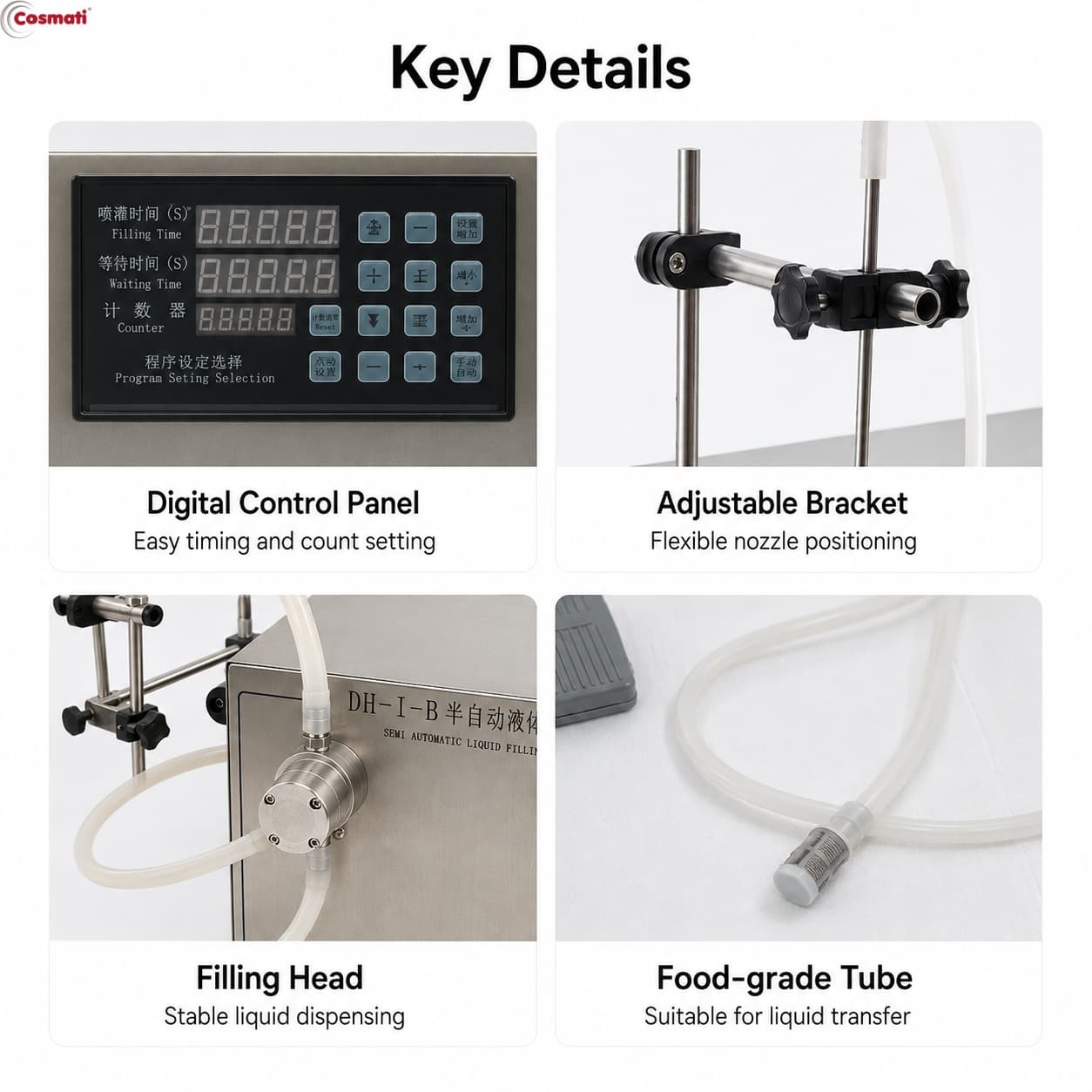

4. Operation is convenient, manual or automatic fitful filling, and the interval time is adjustable.

Technical Data

Product name

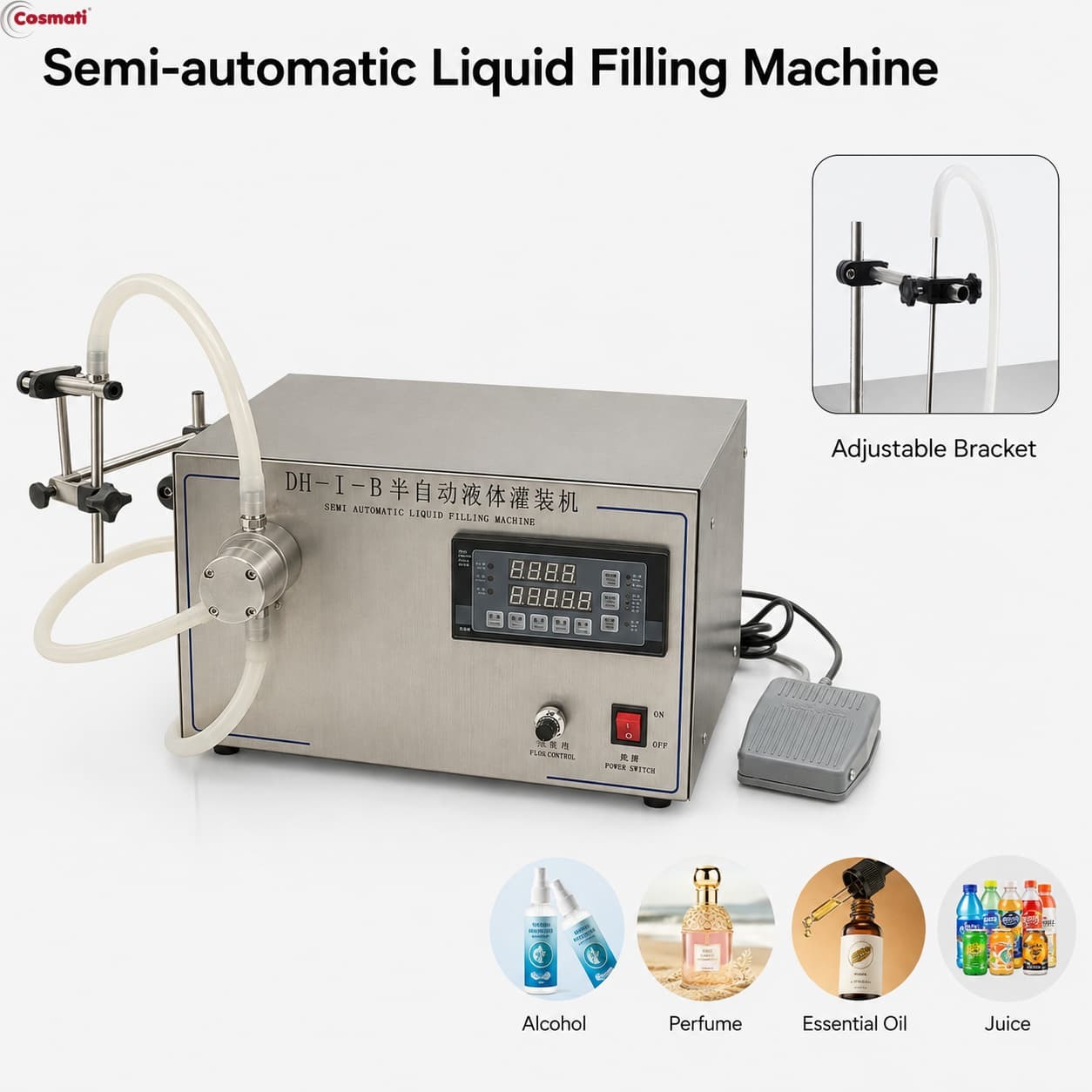

Semi Automatic Liquid Filling Machine
Filling volume
5-150ml,30-500ml,60-1000ml,250-2500ml,500-5000ml
Filling nozzle
1, 2 pcs or customized
Big pump capacity
>14L/min
Small pump capacity
>7L/min
Material
Stainless steel
Packaging Details
Plywood box , match 1 packing list , 1 set wrench , 1pc English manual and some easy damage parts.
Delivery Time
Shipped in 3-5 days after payment

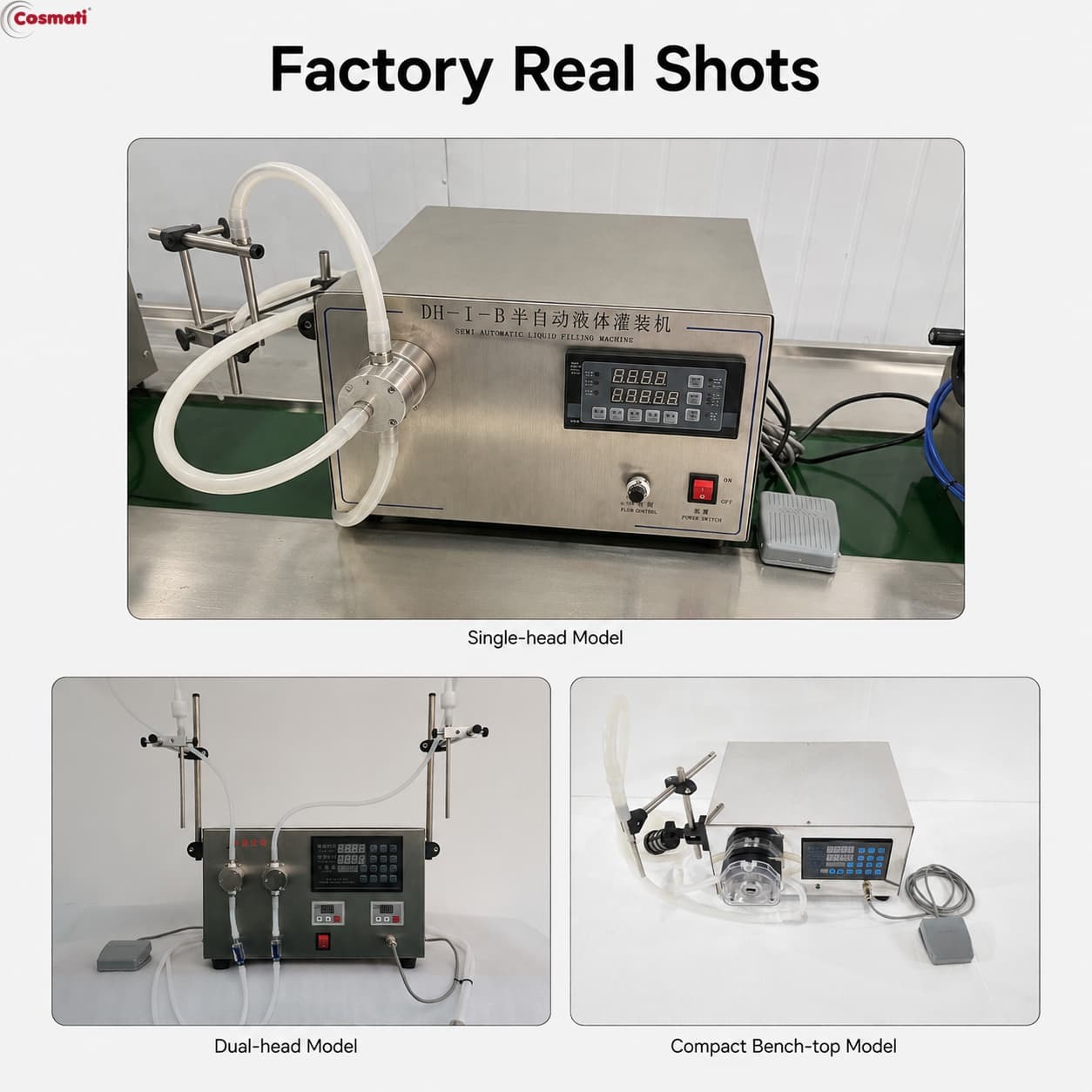

Factory profile
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0


Engineer case
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2
Magnetic Pump Filling Machine Perfume Essential Oil Desktop Dual Head Filler
Trade show participation
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4
Packaging & shipping specifications
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5
Application
Magnetic Pump Filling Machine Perfume Essential Oil Desktop Dual Head Filler

FAQ

1. What products can this magnetic pump filling machine handle?

The machine is mainly suitable for perfume, essential oil, fragrance, toner, cosmetic liquid, water, oil and other low-viscosity liquids.

2. How many filling nozzles does the shown machine have?

The machine shown is equipped with 2 filling nozzles, allowing two containers to be filled during one production cycle.

3. Can other nozzle quantities be customized?

Yes. Different nozzle configurations can be customized according to required output and filling volume. The shown product page should use 2 heads as the standard displayed configuration.

4. What filling volumes can the machine handle?

The supplied configuration lists common filling volumes around 100ml and 200ml.

Actual filling volume can be adjusted according to pump capacity, filling time and product characteristics.

5. Is this machine suitable for small-dose filling?

Yes. The magnetic pump system is particularly suitable for small and medium volume filling of low-viscosity liquids such as perfume and essential oil.
