Features Gallery Product Description Chat Now

Features

Specifications

Application: Food, Chemical

Packaging Type: Case

Packaging Material: Wood

Automatic Grade: Semi-Automatic

Driven Type: Pneumatic

Dimension(l*w*h): 550*580*1600 Mm

Warranty: 1 Year

Key Selling Points: High Productivity

Filling Material: Water, Oil

Filling Accuracy: 99%

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor, Pressure Vessel, PLC, Gear, Piston, Other

Filling Nozzle: 2, 1, 4

After-sales Service Provided: Online Support

Weight (KG): 60

Filling Volume: 100mL, 200mL, 500 ML, 300mL, 400 ML

Product Name: Semi-automatic Shampoo Lotion Bottle Liquid Filling Machine

Keywords: Scrub Paste Filling Machine

Material: SUS304 Or SS316L

Applicable Bottle Height: 30-200(mm)

Filling Accuracy: ±1%

Degree Of Automation: Semi-automatic

Applicable Bottle Diameter: 10-120(mm)

Production Capacity: 10-30 (bottles/minute)

Filling Volume: 10-1000(ml)

Type: Pneumatic

Highlight:

Pneumatic Piston Filling Machine

High Viscosity Filling Machine

Cream Paste Filler

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Cosmati

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

Gallery

Semi Automatic Pneumatic Piston Filling Machine High Viscosity Cream Paste 10-1000mL

Product Description

Semi Automatic Paste Pneumatic Filler High Viscosity Sea Salt Body Sugar Coffee Scrub Filling Machine

Introduction

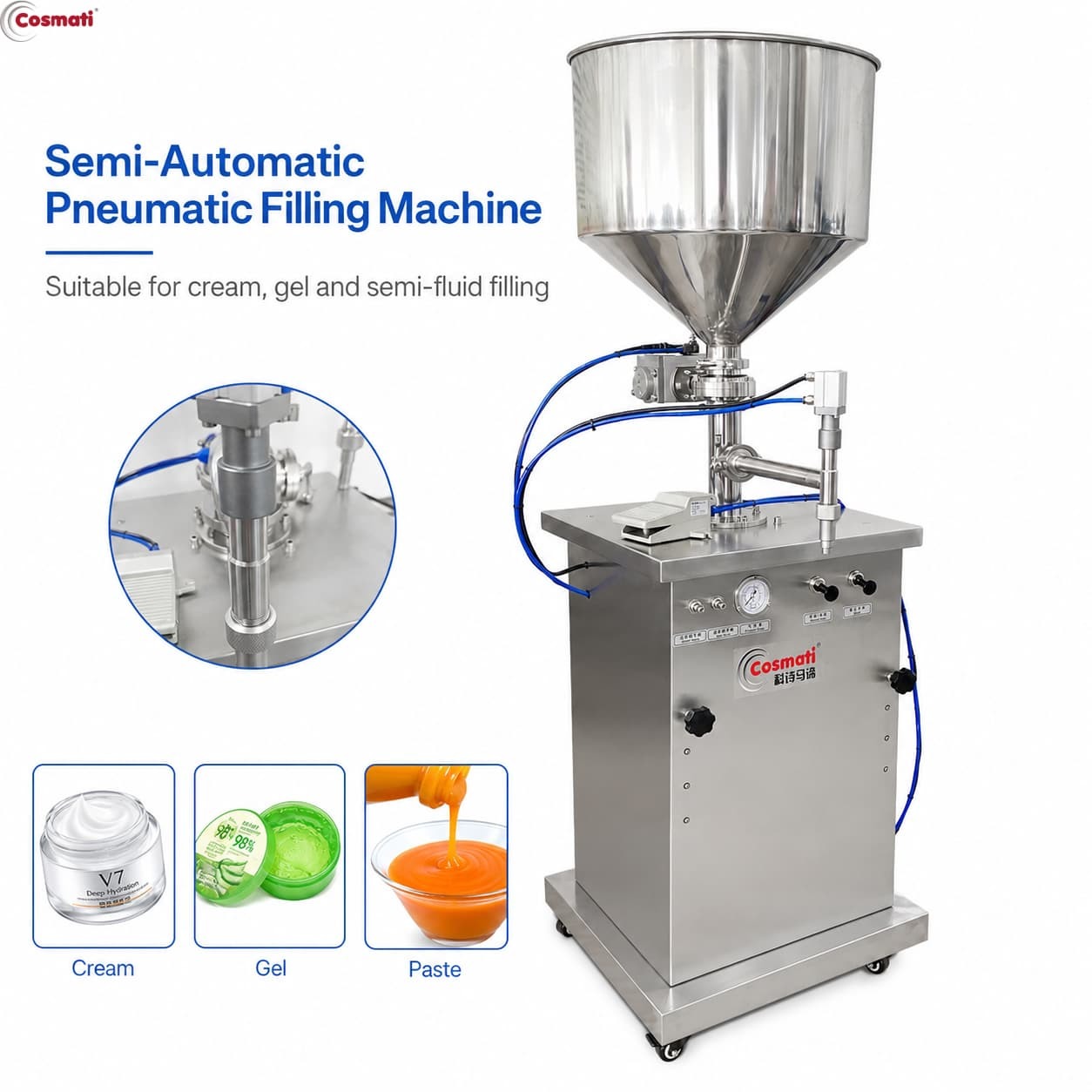

The Semi-Automatic Pneumatic Piston Filling Machine is designed for accurate filling of liquid, cream, paste and other medium-to-high viscosity products.

The machine uses a pneumatic piston dosing system to draw and dispense a preset volume of material during each filling cycle. The filling volume can be adjusted according to different container sizes and production requirements.

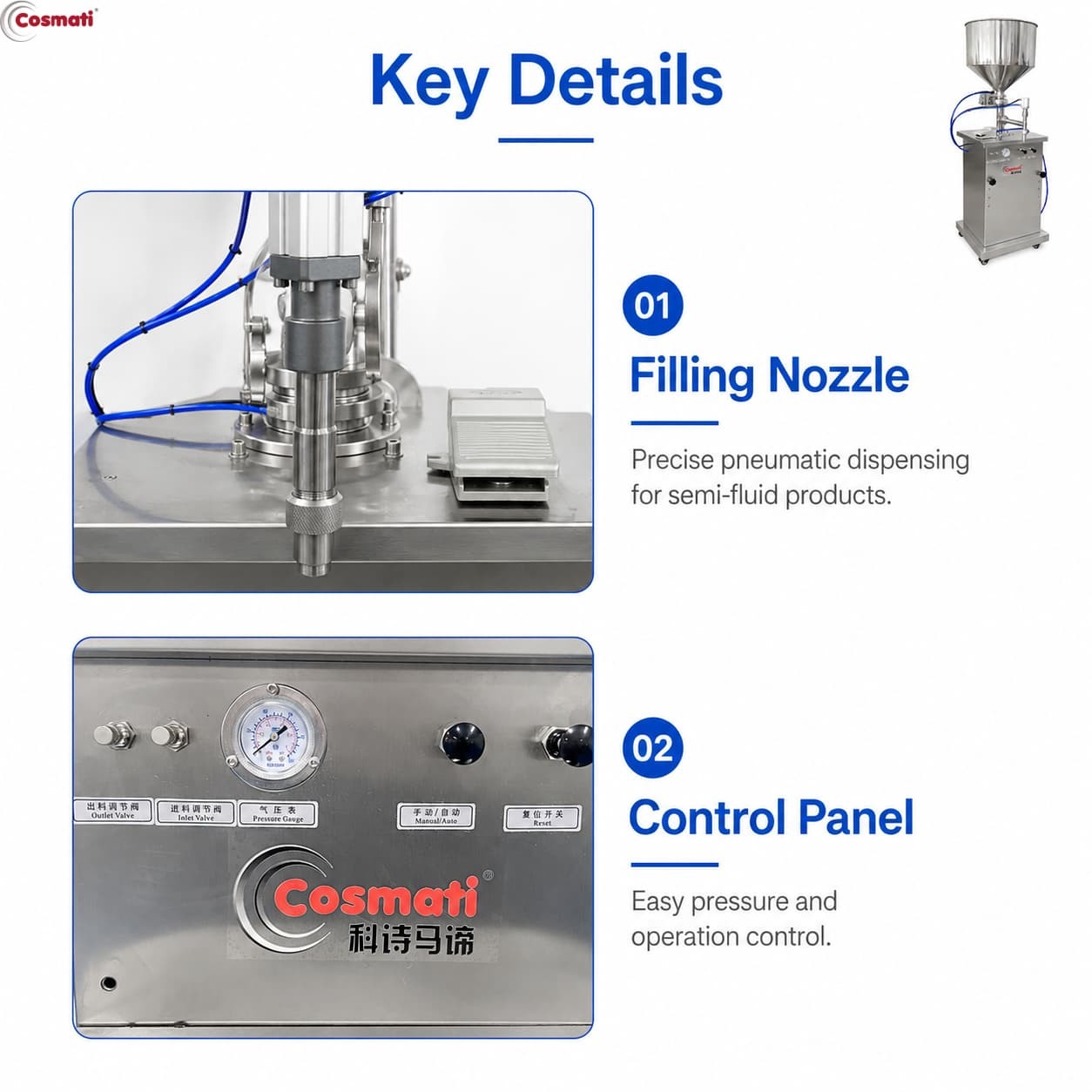

A stainless steel hopper provides direct gravity feeding, while the foot pedal allows convenient operator-controlled filling. The compact vertical structure and caster wheels make the machine suitable for flexible small and medium batch production.

SUS304 or SUS316L product-contact materials can be selected according to the application. The machine is suitable for cosmetics, personal care, food and chemical products when the appropriate material and filling configuration are selected.

Features

1. Simple structure, convenient maintenance and reliable drive.
2. Imported cylinders and pneumatic components ensure the reliability of the machine.
3. High measurement accuracy, no dripping phenomenon.
4. The filling speed is fast and can be filled automatically and continuously.
5. Imported stainless steel material, polished inside and outside, in line with GMP standards.
6. Feeding method: ordinary gravity type.
7. Control method: full pneumatic control.

Model	Filling Volume	Filling Speed	Pressure Supply
CM-SF-250	50-250ml	10-30 bpm	0.4-0.6 Mpa
Material contact part	Hopper volume	Rotary valve	Filling nozzle
SS 316L	35L/50L	with	customized

Factory profile

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0

Engineer case

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2

Trade show participation

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4

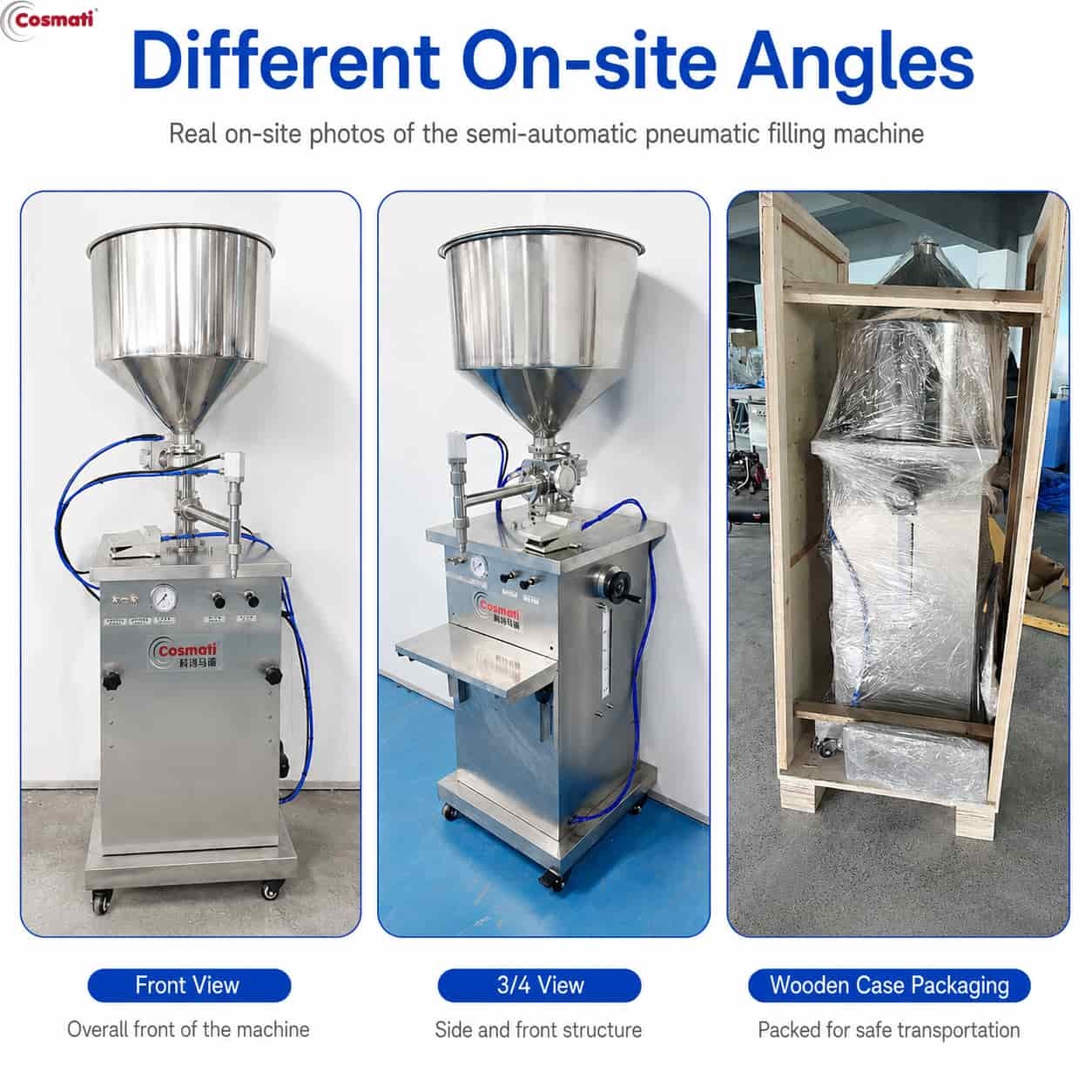

Packaging & shipping specifications

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5

Application

FAQ

Q1: What products can this piston filling machine fill?
A: It is suitable for creams, lotions, gels, ointments, shampoo, sauces, jam, peanut butter, oils and other liquid or semi-viscous products.

Q2: Is this machine suitable for high-viscosity paste?
A: Yes. The pneumatic piston system is suitable for many high-viscosity products. Very thick materials should be evaluated according to actual viscosity and filling volume.

Q3: What is the filling volume range?
A: Filling configurations from approximately 10 to 1000 mL are available. The actual range depends on the selected piston cylinder.

Q4: Can one machine cover the full 10–1000 mL range?
A: Not necessarily. Different filling ranges may require different piston cylinder configurations. The required minimum and maximum filling volumes should be confirmed before ordering.

Q5: How many filling nozzles does the machine have?
A: The machine shown uses one filling nozzle. 2-nozzle or other configurations can be supplied according to production requirements.
