Features

Specifications

Mixer Type: Agitator

Barrel Volume (l): 60

Material Processed: Chemicals

Range Of Spindle Speed(r.p.m): 0 - 63 R.p.m

Weight (kg): 280 KG(617.29lb)

Material: SUS304, SUS316L

Product Type: Cosmetic

Additional Capabilities: Homogenizing

Voltage: 3phase 380V 50Hz Or Customerized

Dimension(l*w*h): Refer To Drawings

Power (kW): 17 KW(22.80hp)

Warranty: 1 Year

Key Selling Points: High Productivity

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor, Gear, Other, Bearing, Engine

Keyword: Hand Cream Emulsifier Homogeneous And Oil Vacuum Mix

Product Name: Cosmetic Turbo Hand Cream Emulsifier Homogeneous And Oil Vacuum Mix

Layout Type: Verticle

Heating Method: Steam/Water Or Oil By Electric

Electric Cabinet: Buttons Or Touch Screen (Optional)

Cooling: Water Recirculation From Jacket

Stirrer Type: Forced Stirrer

Feature: Internal And External Circulation Homogenization

Application Scope: Cosmeceutical Industry

Condition: New

Showroom Location: None

Warranty Of Core Components: 1 Year

Applicable Industries: Retail, Food Shop, Gels,Cream Lotion Sunscreen Mascara Perfume

Max. Loading Volume (L): 50

Max. Loading Capacity: 50liters

Marketing Type: New Product

Application: Cream Lotion Sunscreen Mascara Perfume

Highlight:

50L Vacuum Emulsifier Mixer

Fixed Vacuum Homogenizer Emulsifier

Cream Lotion Vacuum Homogenizer Mixer

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: COSMATI

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

Gallery

High Speed Fixed Vacuum Homogenizer Emulsifier Mixer 50L for Cream Lotion Sunscreen

Product Description

High-Speed 50-Liter Fixed Vacuum Emulsifier Tank Agitator Mixer for Cream Lotion Sunscreen Mascara

Introduction

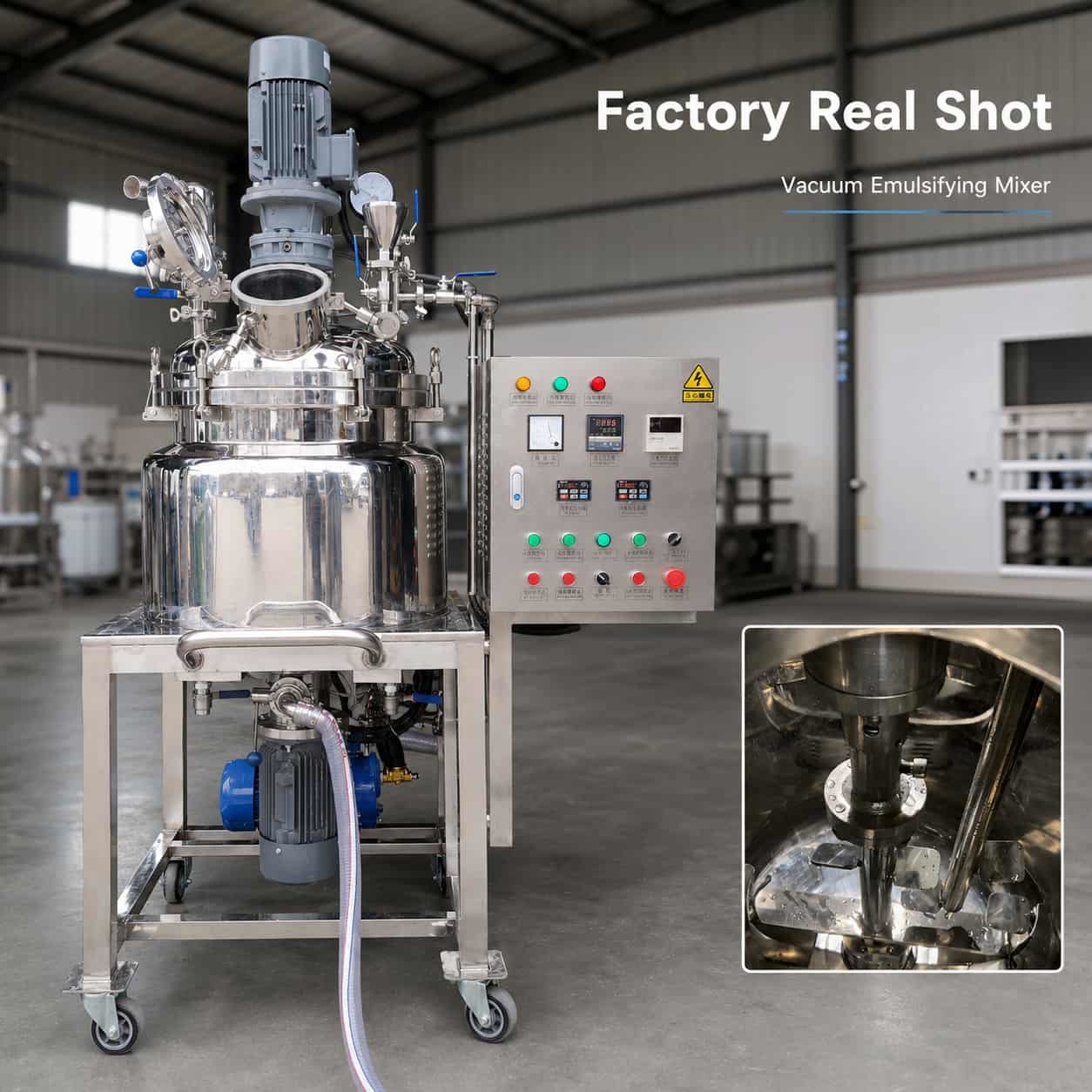

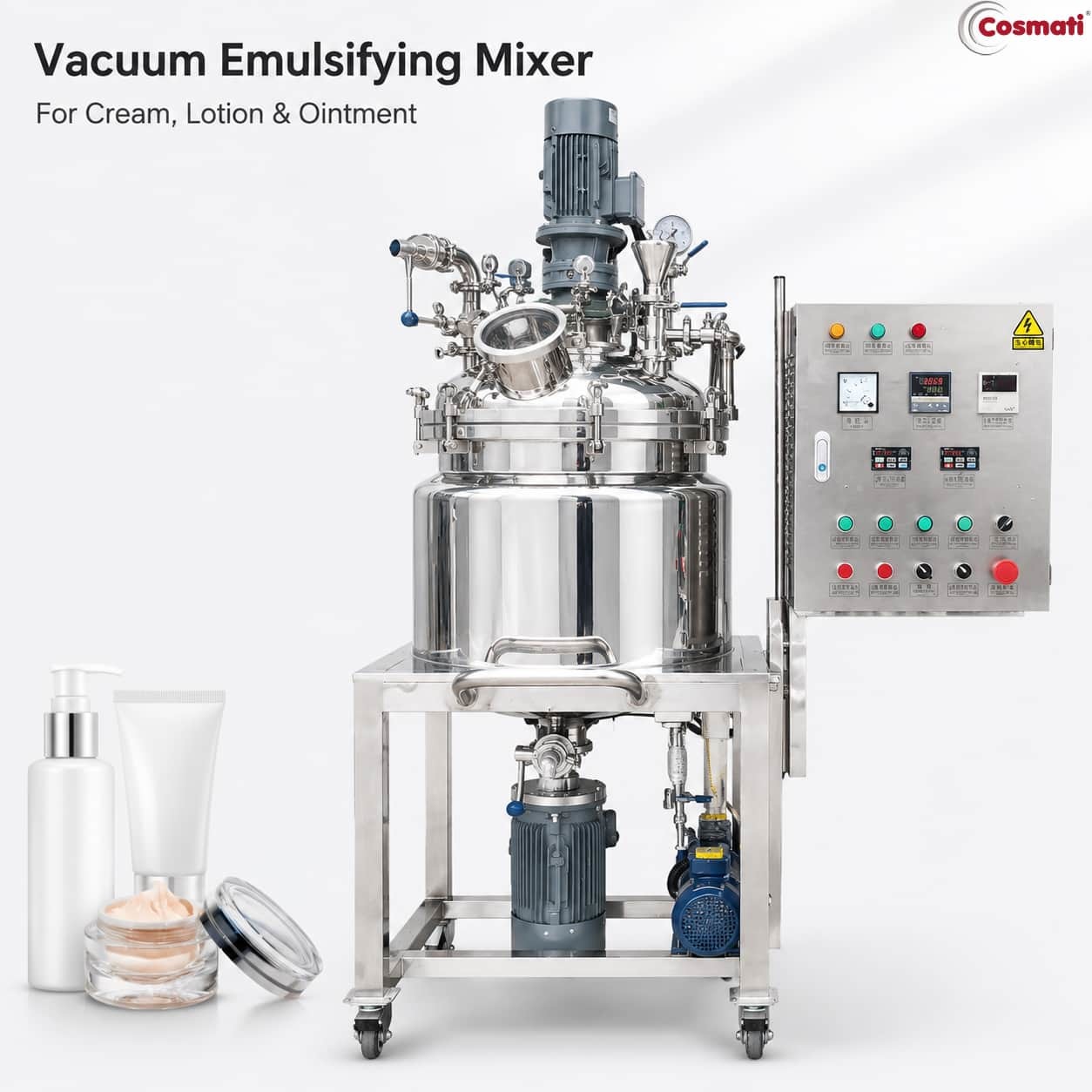

The 50L fixed vacuum emulsifying mixer is designed for cosmetic and personal care production, combining mixing, vacuum processing, homogenizing, emulsifying, heating and cooling functions in one system. It is suitable for producing creams, lotions, ointments, sunscreen and other emulsified cosmetic products.

The tank can be configured with steam or electric heating according to production requirements, while the jacket supports controlled heating and cooling. Vacuum processing helps reduce trapped air during mixing, and the high-shear homogenizing system helps create a smooth and uniform product texture.

Features

Fixed 50L mixing tank designed for small and medium batch cosmetic production.
SUS304 or SUS316L stainless steel options are available, with SUS316L recommended for product-contact parts.
High-shear homogenizing system provides efficient dispersion and emulsification for smooth, uniform formulations.
Wall-scraping agitation improves material circulation and helps reduce residue on the inner tank wall.
Vacuum processing helps reduce air bubbles and improves finished product appearance and consistency.
Steam or electric heating can be configured, while the jacket supports heating and cooling according to process requirements.
Adjustable stirring speed supports different viscosities and cosmetic formulations.

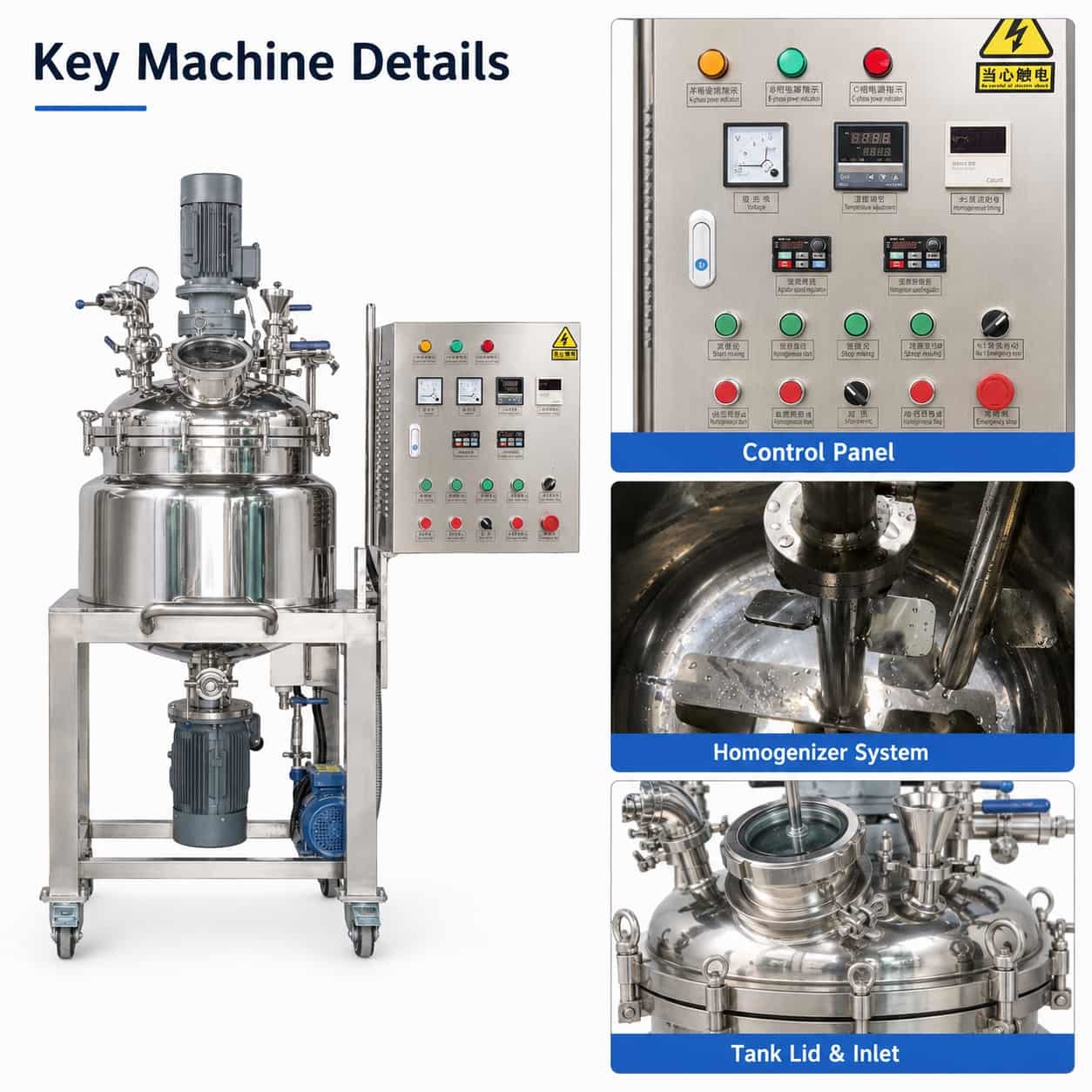

Electrical control system provides convenient control of mixing, homogenizing, temperature and vacuum functions.

Detail

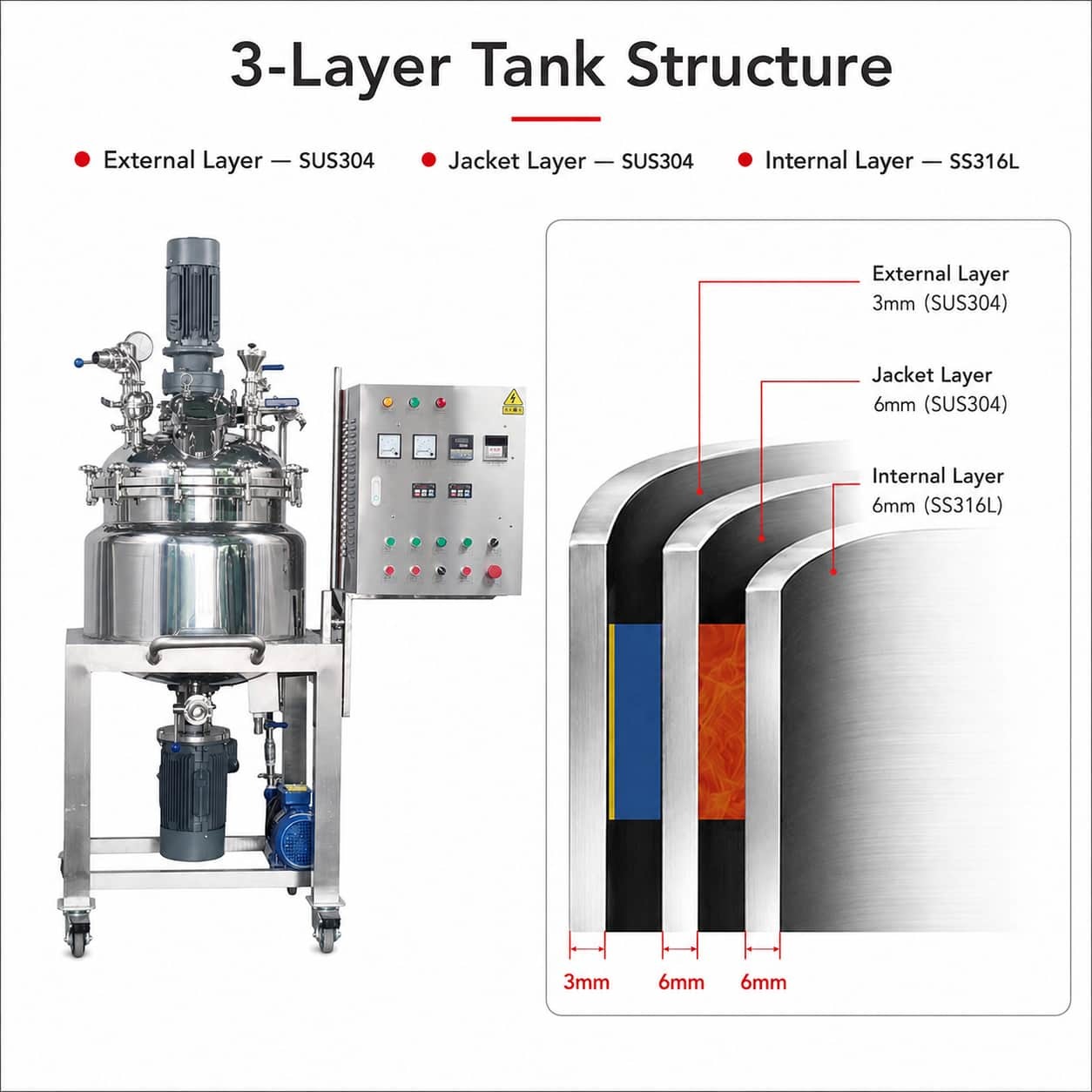

Structure	1. Three-layer stainless steel, tank can be heated and cooled, and it has vacuum functions. 2. Stairs with platform 3. Top one-way mixing with wall scraper, bottom high-speed shearing homogenizer 4. Button control 5.Delta dual frequency conversion 6. Electric heating
Inner layer	Cylinder body: material 316L;
Jacket layer	Material:304;
Outer layer	Cylinder: material SUS304;
Voltage	3P/380V/50Hz

Factory profile

Engineer case

Trade show participation

Packaging & shipping specifications

Application:

FAQ

Q1: What products can this 50L vacuum emulsifying mixer produce?
A: It is suitable for creams, lotions, ointments, sunscreen, skincare emulsions and other cosmetic or personal care products.

Q2: What is the main advantage of the vacuum system?
A: Vacuum processing helps reduce trapped air during mixing and improves product smoothness, appearance and consistency.

Q3: Does the machine have a homogenizing function?
A: Yes. The high-shear homogenizer provides efficient dispersion and emulsification, helping create a finer and more uniform product texture.

Q4: Can the machine heat and cool materials?
A: Yes. Steam or electric heating can be configured, while the jacket can support heating and cooling according to the production process.

Q5: What material is used for the machine?
A: SUS304 and SUS316L stainless steel options are available. SUS316L can be selected for product-contact parts according to production requirements.
