Features

Specifications

Mixer Type: Homogenizer

Material Processed: Chemicals, Food, Cosmetic

Range Of Spindle Speed(r.p.m): 0 - 60 R.p.m

Weight (kg): 380

Material: SUS304, SUS316L

Product Type: Cosmetic

Motor Type: DC Motor

Additional Capabilities: Milling

Voltage: 220V/380V 50HZ

Dimension(l*w*h): Refer To Drawing

Power (kW): 3 KW

Warranty: 1 Year

Key Selling Points: Easy To Operate

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor, Gear, PLC, Bearing, Engine, Other

Capacity: 50 L, 10L-20000L

Configuration: Vertical

Product Name: Vacuum Emulsifier

Heating Mode: Electric Or Steam(optional)

Homogenizing Speed: 0-3000r/min

Type: Lifted Type/fixed Type

Control Panel: Key Control Or Touch Screen(optional)

Keyword: Homogenizing Emulsifier Machine For Cosmetic Cream Lotion

Function: High Shear Homogenizer And Emulsifying

Application: Homogenizing Emulsifying Machine

Structure: Main Emulsifying Pot +water Oil Tank

Highlight:

Cosmetic Cream Vacuum Emulsifying Homogenizer

Movable Vacuum Emulsifying Homogenizer

Vacuum Emulsifying Homogenizer 100L

Basic Infomation

Place of Origin: Guangdong

Brand Name: COSMATI

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

Gallery

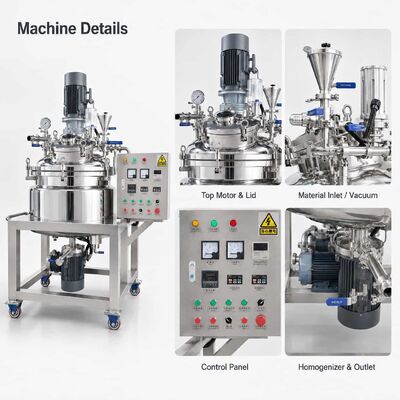

Cosmetic Cream Vacuum Emulsifying Homogenizer Agitator Machine Movable 50L 100L

Product Description

Startup 50L 100L Movable Cosmetics Cream Lotion Making Machine Skincare Moisturizer Agitator Tank Vacuum Mixer Homogenizer

Introduction

Vacuum Emulsifier equipment refers to the equipment professionally used for high-speed shearing, dispersion and mixing of materials. It can make the material fully emulsified and fine, mixed evenly, and remove air bubbles in the production process. Professionally used for cosmetic cream materials and daily chemical cream materials.You can choose PLC touch screen or Push-button type vacuum emulsifiers.

Features

1. Vacuum defoaming function can make the materials meet the requirement of being aseptic.
2. The main boiler lid adopts the lifting system, it is easy to clean and the cleaning effect is more obvious, the main boiler
adopts a tilting discharge.
3. The main tank can be heated and cooled with an electric heating function.

4. Adopts imported electric appliances which can meet international standards.
5. Contacted parts are made of SS316L, the wall scraper is made of PTFE.

Technical data

Capacity	Wall scraper mixer	Homogenizer	Water and oil pot	Disperser
50L	1.1kw, 0-65rpm	2.2kw, 0-3600rpm	45/30L	0.37/0.37kw, 1440rpm
100L	1.5kw, 0-65rpm	4kw, 0-3600rpm	90/60L	0.55/0.55kw, 1440rpm
200L	3kw, 0-65rpm	5.5kw, 0-3600rpm	180/120L	0.75/0.75kw, 1440rpm
300L	4kw, 0-65rpm	7.5kw, 0-3600rpm	270/180L	1.1/1.1kw, 1440rpm
500L	5.5kw, 0-65rpm	11kw, 0-3600rpm	450/300L	1.5/1.5kw, 1440rpm

Factory profile

Engineer case

Trade show participation

Packaging & shipping specifications

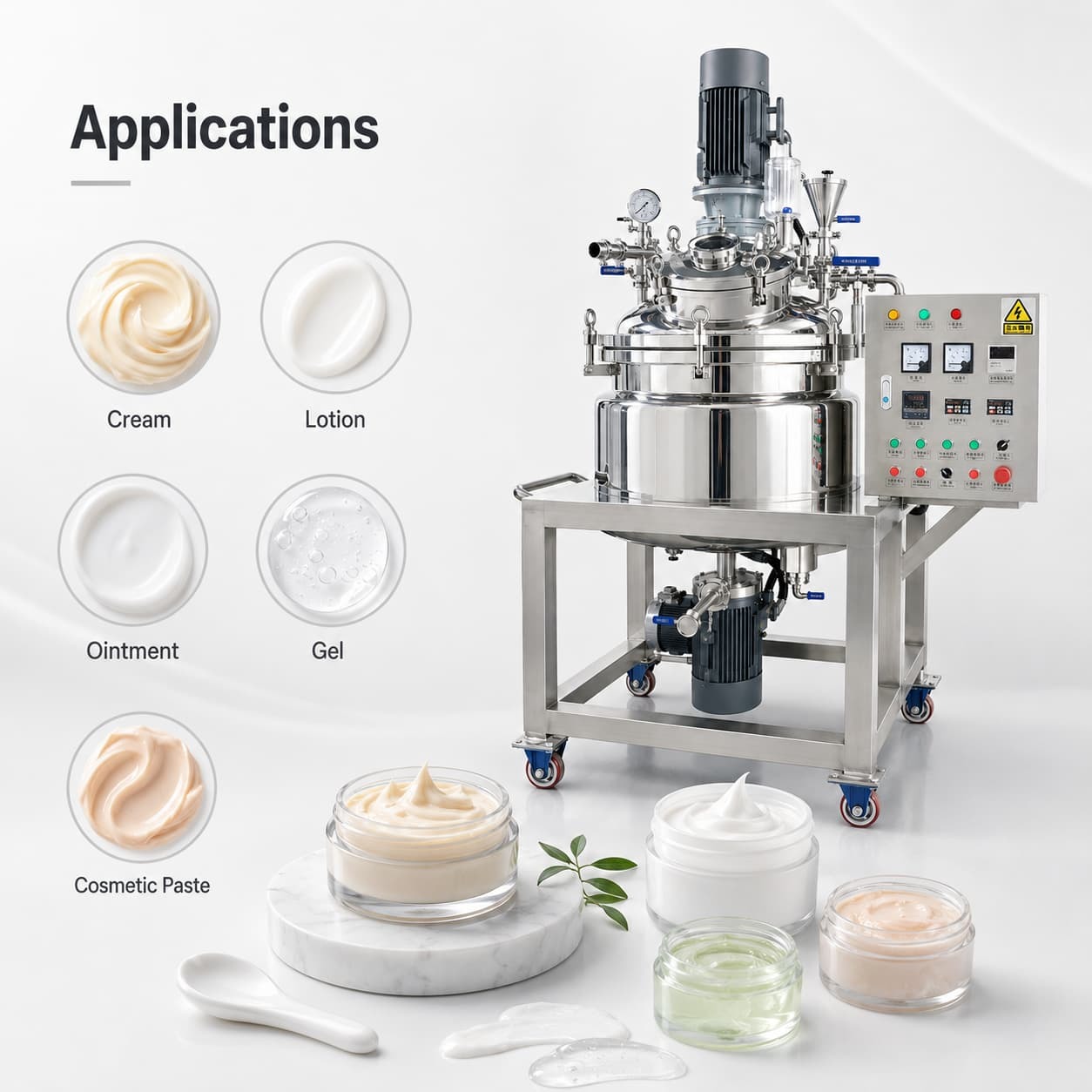

Application

FAQ

1. Can you customize the volume for the vacuum emulsifier?
Yes, we can do it. But it will take much more time to customize it. The production time for standard machine is about 30 working days.

2. Which parts can you customize?
Such as mixer/homogenizer motor, mixing paddle, layer, heating method, control type(PLC/Button), electric box, volume, etc. It depends on your requirements.

3. What functions does the machine have?
Such as vacuum defoaming, heating, cooling, mixing, emulsifying, high shear homogenizing, lifting, auto discharge, auto
cleaning,etc.

4. What products can this machine produce?
Cosmetics: face cream, lotion, serum, body butter, liquid foundation, sunscreen cream, etc.
Food: mayonnaise, ketchup, source, etc.
Daily chemical: shampoo, conditioner, hair essential oil, toothpaste, liquid soap, detergent, etc.

5. What is the function of oil/water tank?
Good question! Its function is pre-heating/pre-process. The semi-finished products will be transferred to the main tank for
mixing. If you want to buy vacuum emulsifier with small volume, so we don’t recommend you to equip them.
