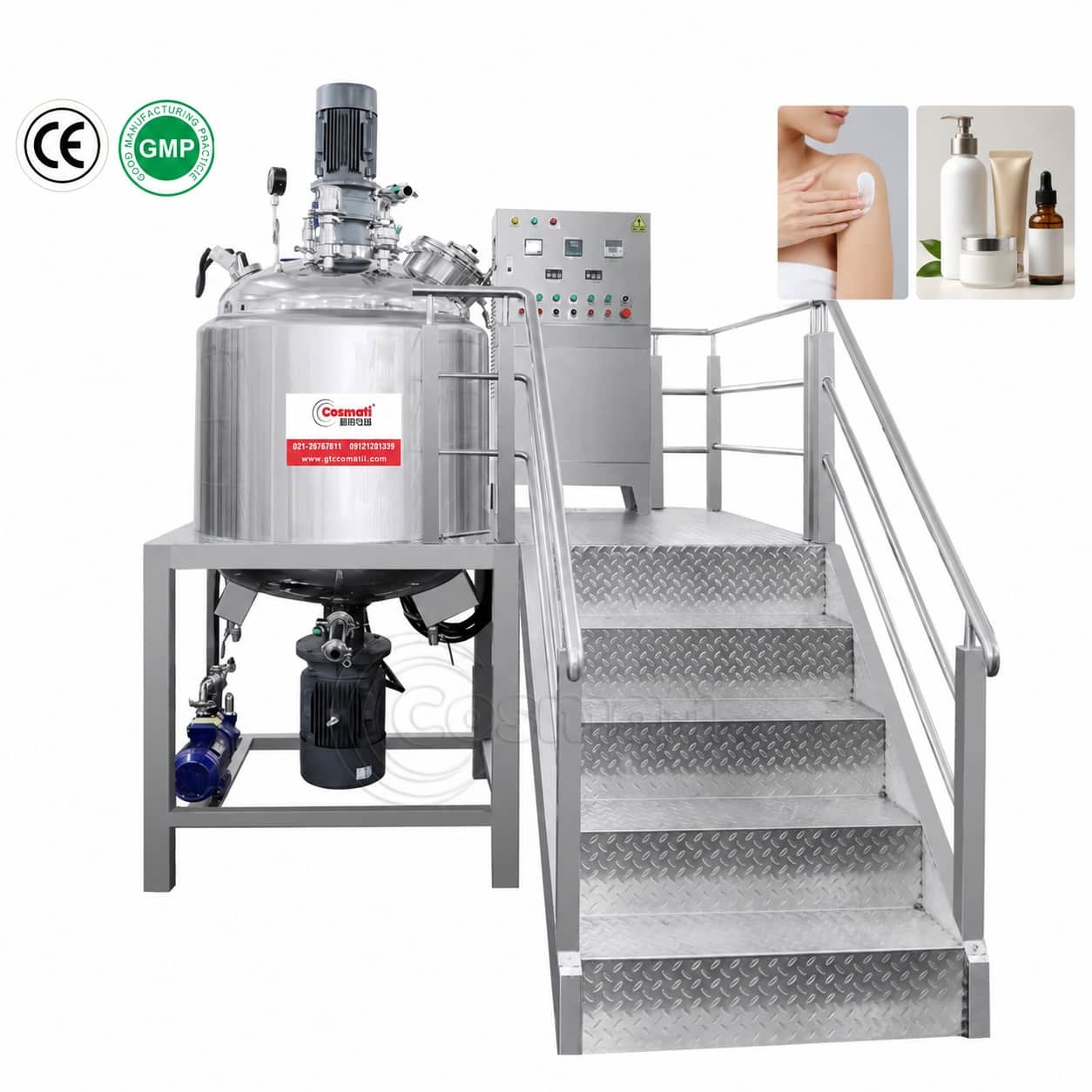

500L Vacuum Emulsifying Mixer Homogenizer Cosmetic Cream Making Machine

1
MOQ
$8,500-9,000
Price
500L Vacuum Emulsifying Mixer Homogenizer Cosmetic Cream Making Machine
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Year
Weight (kg): 850
Automatic Grade: Fully-Automatic
Machine Type: Mixing
Highlight:

GMP Vacuum Emulsifying Mixer

,

PLC Touch Screen Emulsifying Mixer

,

Fully Automatic Cream Making Machine

Basic Infomation
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 7 work days
Payment Terms: TT
Supply Ability: 10000 set
Product Description
500L Industry Vacuum Emulsifying Mixer Homogenizer Ointment Cosmetics Cream Making Machine


Introduction
The fixed type vacuum emulsifier can heat or cool the material according to the process requirements. The heating method can be
steam or electric heating according to the customer's requirements. The advanced electronic control system adopts PLC control and is equipped with a true color touch screen to
comprehensively monitor the material temperature and stir. and homogenization speed.

Features

1. Designed and manufactured in accordance with GMP standards (the overall support of the equipment is stainless steel, and the pot body is polished 300U).
2. 316L material is used for material contact parts.
3. The bearing adopts Japanese NSK bearing.
4. Low power consumption, strong mechanical protection function, constant torque work make the mechanical operation more stable.
5. The water circulation mechanical seal has good sealing performance and long service life. The homogenizer can work continuously for 24 hours.
6. The relative movement of the upper wall scraping stirring paddle and the fixed paddle makes the material agitated more fullyand evenly.
7. Many safety protection functions make production safer.
Main pot
Working volume:500L; Full volume:540L

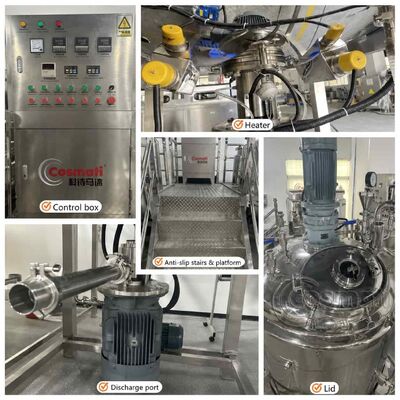

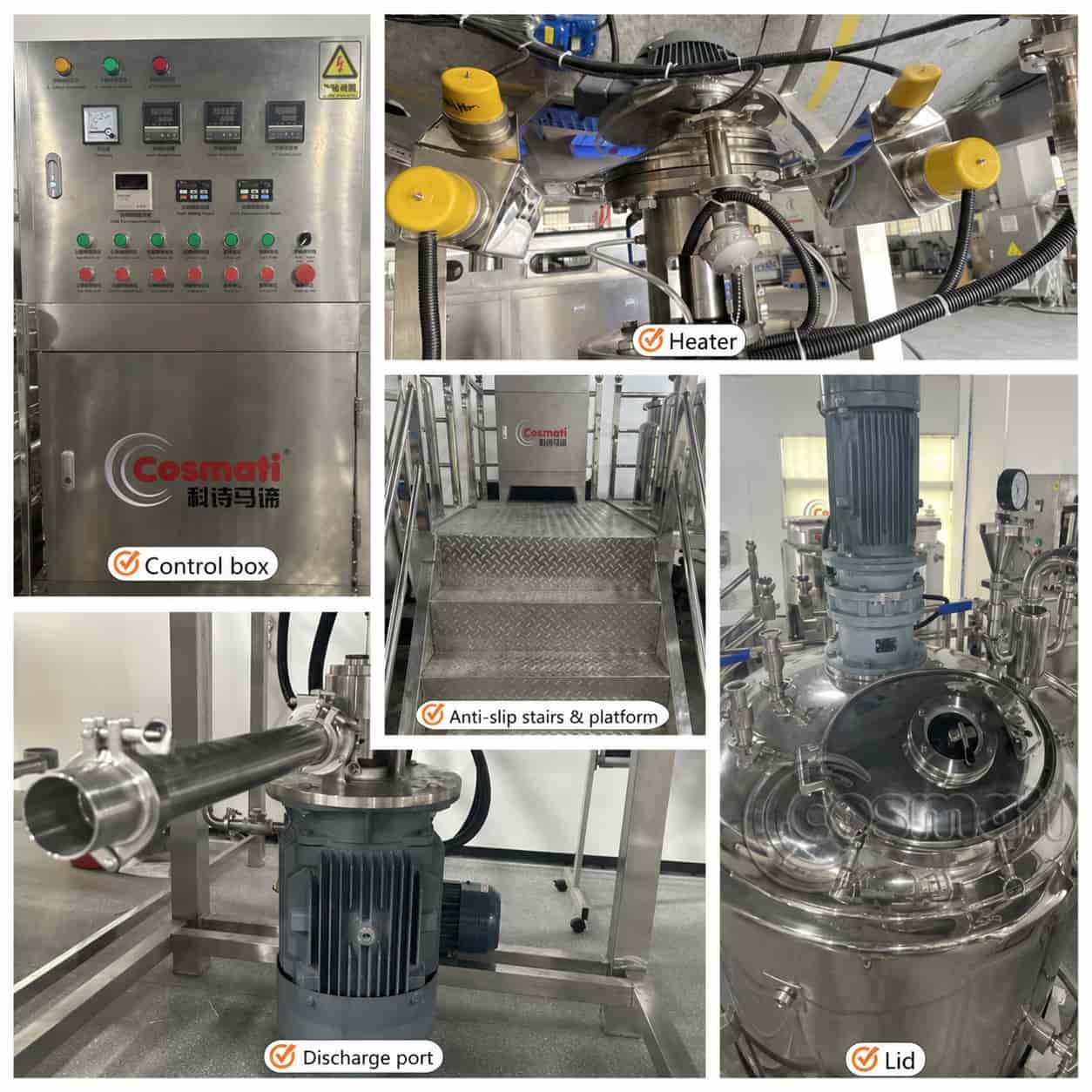

Structure
1. Three-layer stainless steel,  tank can be heated and cooled, and it has vacuum functions.
2. Stairs with platform
3. Top one-way mixing with wall scraper, bottom high-speed shearing homogenizer
4. Button control
5.Delta dual frequency conversion
6. Electric heating
Inner layer
Cylinder body: material 316L; wall thickness: 6mm
Jacket layer
Material:304; wall thickness: 5mm
Outer layer
Cylinder: material SUS304; wall thickness: 2mm
Voltage
3P/380V/50Hz
Factory profile
500L Vacuum Emulsifying Mixer Homogenizer Cosmetic Cream Making Machine

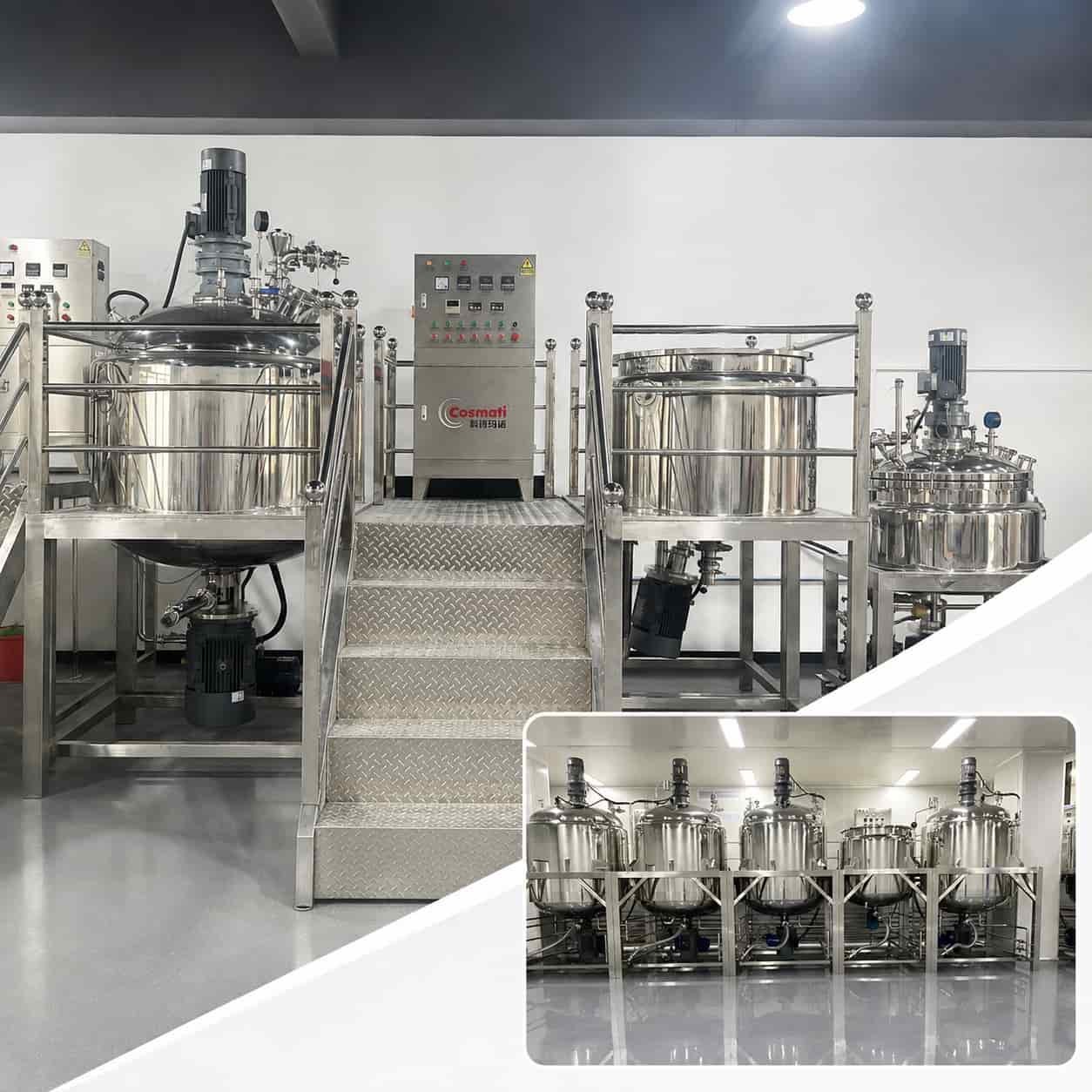

Engineer case
500L Vacuum Emulsifying Mixer Homogenizer Cosmetic Cream Making Machine
500L Vacuum Emulsifying Mixer Homogenizer Cosmetic Cream Making Machine
500L Vacuum Emulsifying Mixer Homogenizer Cosmetic Cream Making Machine

Trade show participation
500L Vacuum Emulsifying Mixer Homogenizer Cosmetic Cream Making Machine
Packaging & shipping specifications
500L Vacuum Emulsifying Mixer Homogenizer Cosmetic Cream Making Machine

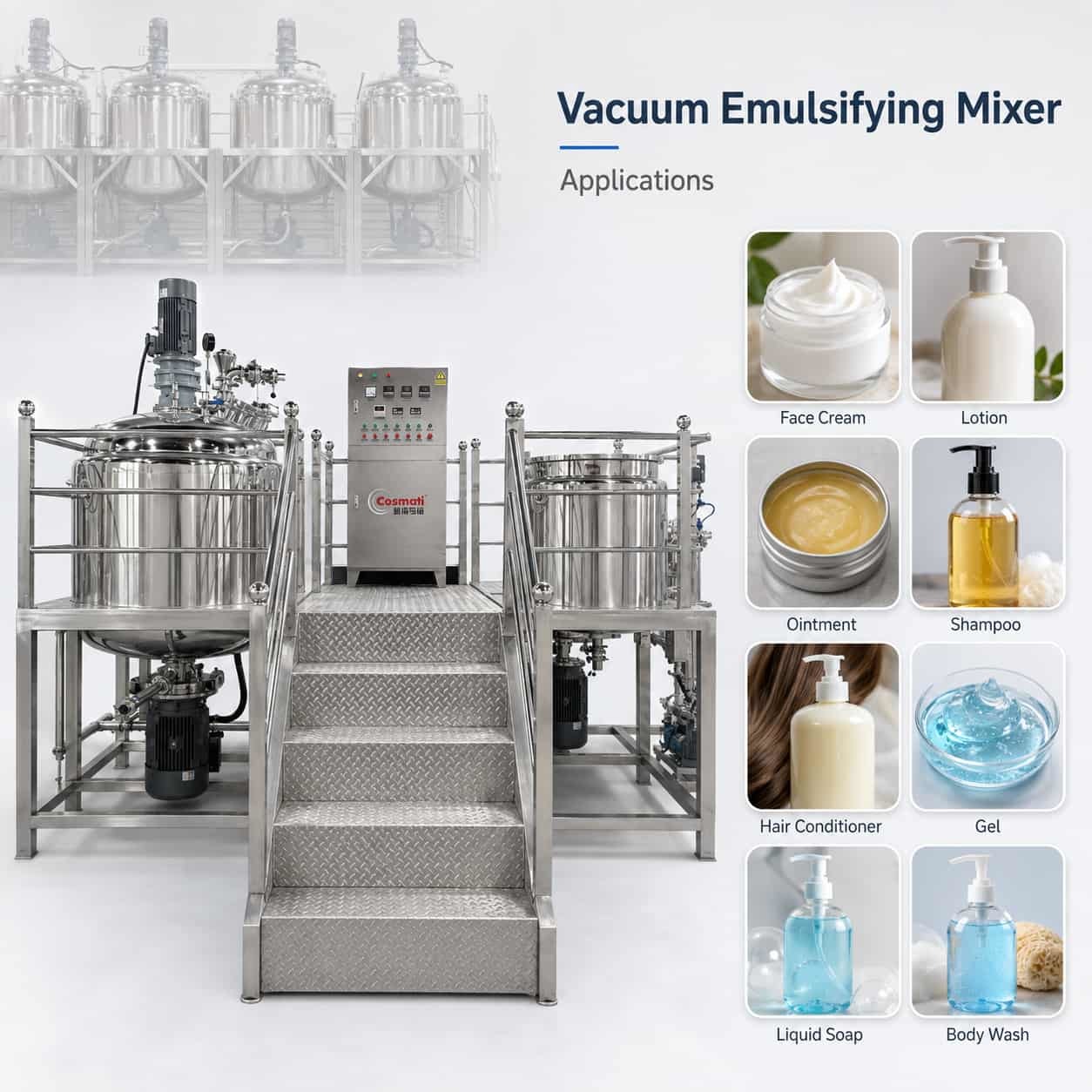

Application

500L Vacuum Emulsifying Mixer Homogenizer Cosmetic Cream Making Machine

FAQ

Q1: What products can this vacuum emulsifying mixer produce?
A: It is suitable for cream, lotion, ointment, shampoo, hair conditioner, gel, liquid soap, body wash and other cosmetic or personal care products.

Q2: Can the machine process high-viscosity materials?
A: Yes. The mixer can handle medium- to high-viscosity materials with the scraping agitator and homogenizing system.

Q3: What is the function of the vacuum system?
A: The vacuum system helps reduce air bubbles during mixing and emulsification, improving product appearance and consistency.

Q4: Does the machine support heating and cooling?
A: Yes. The jacketed tank can be configured for heating and cooling to maintain the required processing temperature.

Q5: Can the capacity and configuration be customized?
A: Yes. Tank capacity, homogenizer, heating method, control system and other configurations can be customized according to your product and production requirements.
