Features

Specifications

Application: Food, Beverage, Commodity, Chemical, Machinery & Hardware

Packaging Type: Bottles

Packaging Material: Plastic, Metal, Glass

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 1P/220V/50Hz, 220V/1P/50HZ

Dimension(l*w*h): L850*W410*H720mm

Warranty: 1 Year

Key Selling Points: Eco-Friendly

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: PLC, Gear, Engine, AxleLabel Install Frame

Products Name: Double Sides Labeling Machine Semi Automatic

Keywords: Front And Back Labeling Machine

Capacity: 20BPM

Labeling Accuracy: ±1mm

Paper Roll Outer Diameter: ≤250 Mm

Applicable Bottle Size: L200mm, W150mm, H120mm;

Ambient Temperature: 0-50℃

Ambient Humidity: 15-85%

Material Of Label: Glassine Backing Paper.

Type: LABELING MACHINE

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops

Showroom Location: None

Condition: New

Warranty Of Core Components: 1 Year

Weight: 45 KG

Machinery Capacity: 1200BPH

Highlight:

Semi Automatic Front Back Sticker

Flat Square Bottle Labeling Machine

Front Back Sticker Applicator Machine

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: COSMATI

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

Gallery

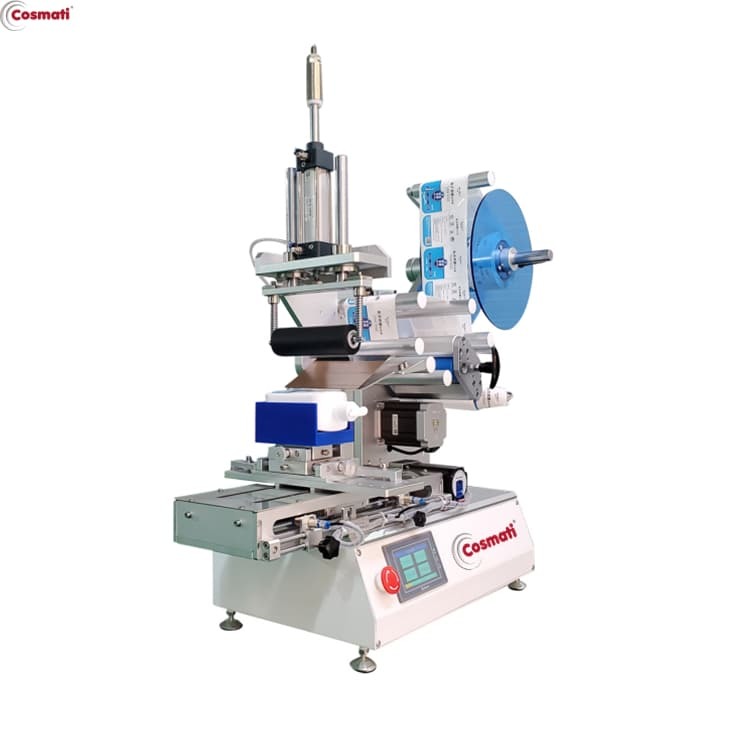

Flat Square Bottle Labeling Machine Semi Automatic Front Back Sticker Applicator

Product Description

CM-SF-01 tabletop labeling machine for liquor bottle front back sides label sticker machine

Introduction

This semi automatic labeling machine is suitable for flat bottles.It is suitable for single side and double side
labeling ,the distance between front and back side label stickers is adjustable.This machine can be equipped with circumferential positioning detection device which helps to achieve to specific position labeling.It can be also equipped with the date coder for printing production date and number, if you need these please contact us.

1 widely used in food, medicine, cosmetics, daily chemicals, electronics and other industries.
2.Semi-automatic labeling for planar and partial arc surfaces in semi-finished or finished products

Working process

1.Core working principle
The sensor detects the passing of the product, and sends a signal back to the labeling control system. The control system controls the sending of the label at the appropriate position and attaches it to the position where the product is to be labelled. The product flows through the labeling device, and the label is coated and attached to the product. The sticking action of the label is completed.
2.Operation process

Open machine - Installation label - Adjustment label - The adjustment of electric eye - Label position adjustment - Paste label

Technical Data

Labeling accuracy	Model	Power supply	Net weight
±1mm	CM-SL-01	220V/50Hz, 0.75KW	About 32KG
Applicable label length	Applicable label width	Overall size	Labeling speed
10 mm~150 mm	10～100mm	550550650 (LWH)	15-20bpm

Factory profile

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0

Engineer case

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 3

Trade show participation

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4

Packaging & shipping specifications

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5

Application

FAQ

1. What containers can this labeling machine handle?

It is mainly suitable for flat, square and rectangular bottles or containers made from plastic, glass or metal.

2. Can this machine label both the front and back of a bottle?

Yes. Front and back labeling can be completed by repositioning the container and applying the second label.

It should not be described as a simultaneous automatic dual-head labeling machine.

3. Is this a double sided automatic labeling machine?

No. The shown machine has one label dispensing system and is better classified as a semi automatic flat bottle labeling machine.

4. What type of labels does it use?

It uses self-adhesive pressure-sensitive sticker labels supplied on a label roll.

5. Does this machine use hot glue?

No. The shown machine uses roll-fed self-adhesive labels, so Hot Glue Labeling Machine should not be used as the main product name.
