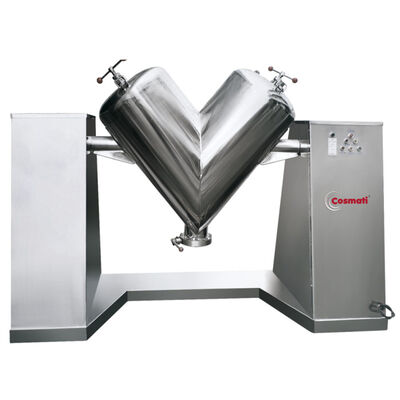

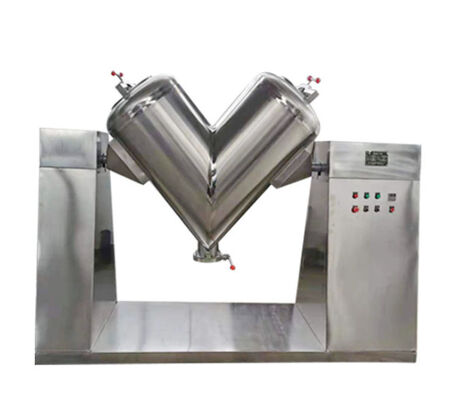

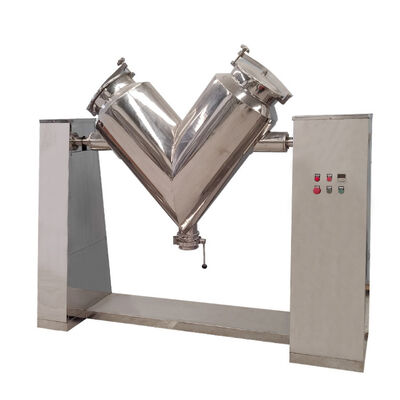

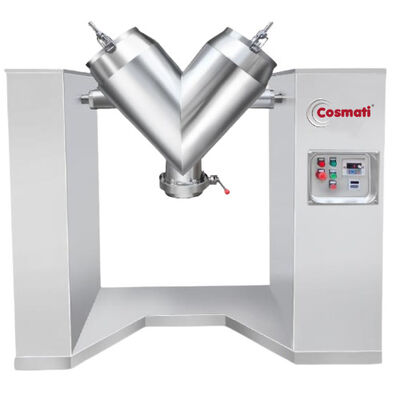

V-type powder mixer industrial chemical metallurgical food mixer equipment
Description:
This machine adopts labor feeding and enclosed flapper valve for discharging. It will not produce powder dust, and it also will not produce mechanical compression and strong friction during mixing. So the material particles can remain intact. The mixing barrel is made of stainless steel, which won’t pollute the material. Besides, this machine has timing device, which can control the mixing time of materials.
Main purpose:
Mixing application scope: due to its excellent structure and reasonable design concept, the mixer has the advantages of fast mixing, uniform mixture, convenient machine operation, easy cleaning, firmness and durability, compact structure and high technical content. It is widely used in pharmacy, food, medicine, pesticide, zinc oxide, detergent, veterinary medicine, compound fertilizer, feed, petroleum, metallurgy, mining Technology of mixing, mixing, stirring, drying, coloring and other materials for building materials industry, coatings, dyestuffs, pigments, auxiliaries, calcium carbonate, biology, ceramics, chemical industry, flavors and fragrances, chicken essence, condiments, tea, chemical industry, building materials industry, coatings, plastics, rubber, condiments and other industries. Medicine: a mixture of capsules, granules, traditional Chinese medicine condiments, powdered or granular Chinese herbal medicine, etc.
Features
1. Material is mixed in closed container without dust flying.
2. The automatic control of the equipment is simple, convenient and vibration-free.
3. No dead angle, fast unloading, convenient flushing and conforming to specifications
Working Principles
The machine adopts gravity diffusion principle for mixing, and the pressure feed to materials is small, so it will not shear and crush materials. The cylinder is made of high-quality stainless steel, and the inner and outer walls are polished. There is no pollution to materials in the mixing process, low power consumption, convenient cleaning, etc. Stainless steel butterfly valve is used for discharging at the inlet and outlet, without dust leakage and flying. The large volume mixer can be equipped with vacuum feeding system to improve working efficiency and working environment. It is especially suitable for mixing materials with similar particle size and apparent density. For the rotation axis of V-type mixer, mandatory mixing blades are added in the V-type cylinder to speed up the mixing speed. It can also be applied to the mixing of easily agglomerated materials. You can choose different materials (carbon steel, stainless steel 201, stainless steel 304, stainless steel 316) according to your own needs. The cylinder of the V-type mixer rotates around the center of the rotating shaft driven by the drive shaft, and the materials also move by gravity diffusion with the two inclined cylinders of the V-type. When the connection (bottom) of the V-type cylinder rotates at the lower position, The material converges to the bottom. When the connection of the V-shaped cylinder rotates at the upper position, the materials collected at the bottom are divided into two inclined cylinders, so that the materials of each inclined cylinder can enter another inclined cylinder through the connection interface. With the continuous rotation of the cylinder and the continuous change of position, the materials of the V-shaped cylinder are repeatedly misplaced, translated and diffused, so as to realize uniform mixing.
Main Structure
About us
We are a cosmetic machinery manufacturer which professional in researching and developing, producing cosmetic machines. Through the agency of South Korea, Japan, Italy,equipment brand, we have deposited leading technology and applied it to our products.We focus on color cosmetic fields and cosmetic fields and provide the complete set of solutions for your company.
Our main products including Vacuum mixer homogenizer,mixer machine,cosmetic filling machine,perfume filling machine,lip gloss filling machine ,mascara filling machine,lipstick filling machine and so on.
We provide fair price with competitive products. Excellent,Professional,Competitive products and good service are provided. Dedicate QC team is responsible for quality control from start producing to delivery to customers' side. Every product is carefully verified before delivery to customer, as well as detailed inspection record to provide accurate after-sales service
Packaging & shipping specifications
Application
FAQ
1. What is this V-type powder mixer mainly used for?
This machine is designed for batch blending of dry powders, granules and free-flowing industrial materials, including compatible chemical, metallurgical, food and other powdered raw materials.
2. Is this machine suitable for metallurgical powders?
Yes, it can be used for compatible metallic and metallurgical powder blends. Material abrasiveness, density, particle size and chemical properties should be confirmed before selecting the final vessel material and configuration.
3. Can it mix both powder and granular materials?
Yes. The V-shaped vessel can process suitable powder-to-powder, granule-to-granule and powder-granule mixtures.
4. How does the V-type mixer achieve uniform blending?
As the V-shaped vessel rotates, materials repeatedly divide, tumble, combine and redistribute by gravity, producing gentle batch blending without high-speed agitation.
5. What types of materials are most suitable for V-type mixing?
The best results are generally achieved with materials that have relatively similar particle size, bulk density and flowability.
