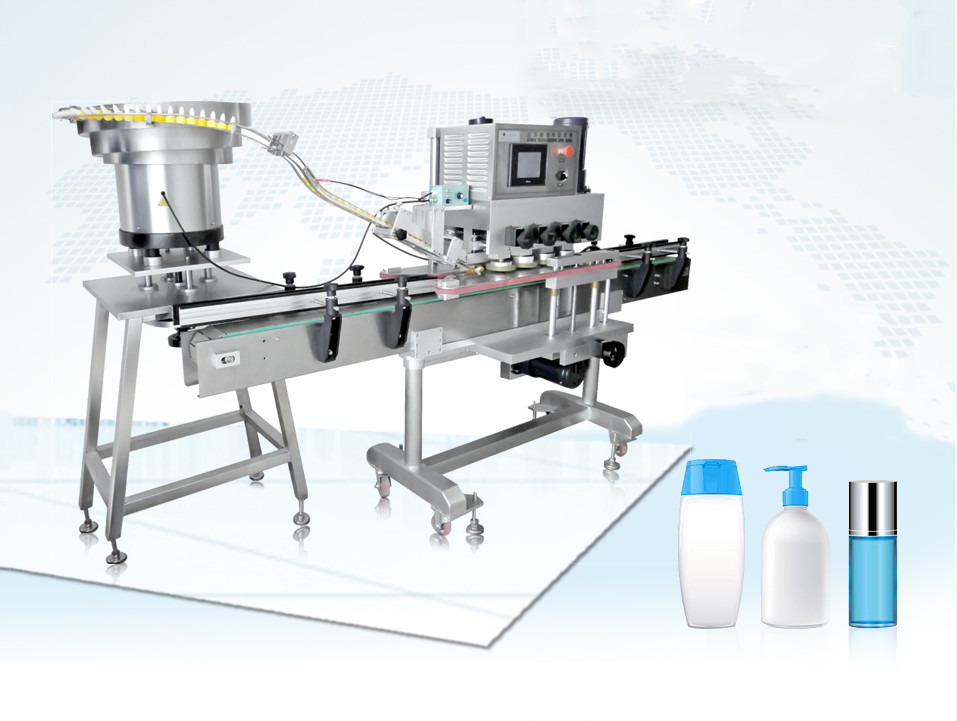

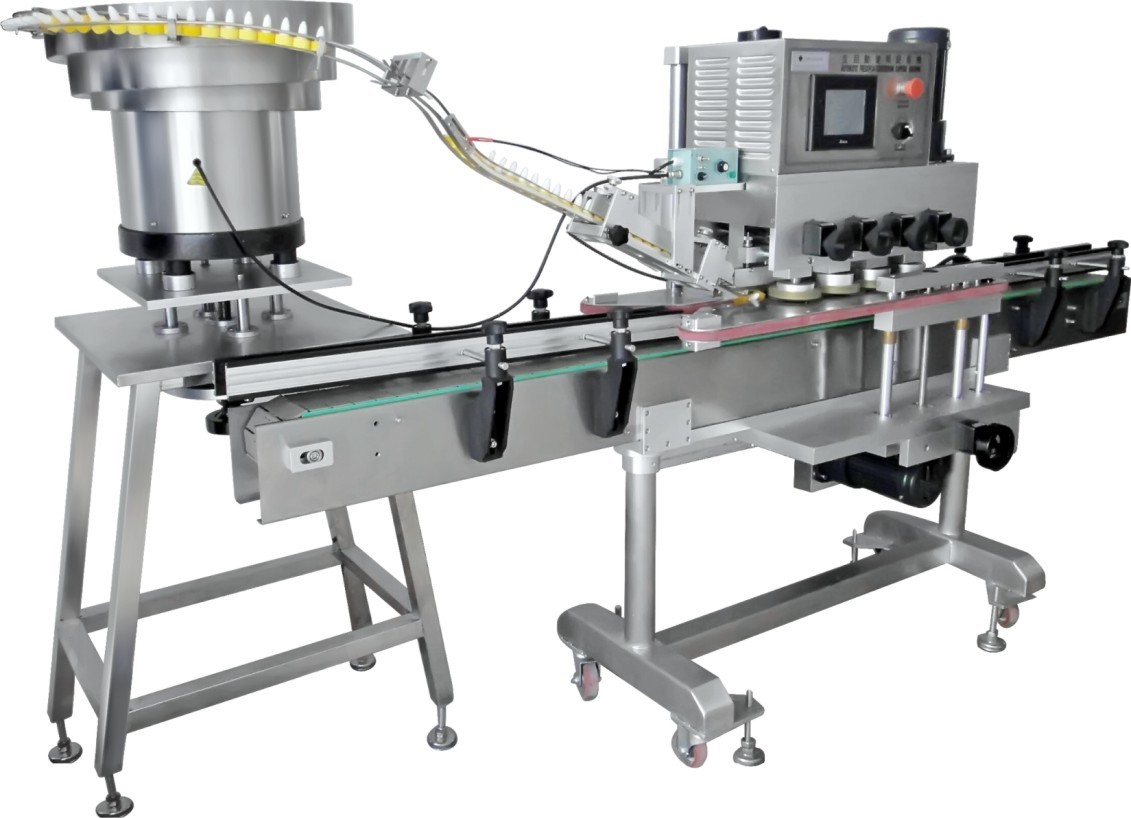

Full automatic capping machine with cap feeder

1 SET
MOQ
1000-100000 USD
Price
Full automatic capping machine with cap feeder
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Full Automatic Capping Machine With Cap Feeder, Cap Screwing Machines
Keyword 01: Capping Machines
Material: Stainless Steel 304
Operation Mode: Automatic
Working Voltage: 220V
Applicable Bottle Specifications: φ80~φ115mm
Applicable Cover Specifications:: Diameter φ20~φ55mm
Production Capacity: 2000~3500 Bottles/hour
Qualified Rate Of Capping: ≥99%
Compressed Air Pressure: 0.4~0.6Mpa
Stand-alone Noise:: ≤70dB
Weight: About 300kg
Highlight:

Automatic Capping Machine

,

Full Automatic Capping Machine

,

Automatic Cap Feeder Machine

Basic Infomation
Place of Origin: GUANGZHOU,CHINA
Brand Name: COSMATI
Certification: CE
Model Number: CM-6B
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 7 work days
Payment Terms: TT
Supply Ability: 10000 set
Product Description

Full automatic capping machine with cap feeder, cap screwing machines


Full automatic capping machine with cap feeder

Full automatic capping machine with cap feeder

Product Introduction

Series Name: Filling/Packing Series
Model number: CM-6B
Name: Fully automatic capping machine


Product Parameter

Applicable bottle specifications: φ80~φ115mm; Height: 800-320mm

Applicable cover specifications: diameter φ20~φ55mm
Production capacity: 2000~3500 bottles/hour
Qualified rate of capping: ≥99%
Power source: AC220V, 50/60Hz
Power consumption: ≤1kw
Compressed air pressure: 0.4~0.6Mpa
Speed control: frequency conversion speed regulation
Stand-alone noise: ≤70dB
Weight: About 300kg
Dimensions: L2400*W575*H1600(mm)


Features

  1. New concept of flexible modular combination design, suitable for swivel-in of bottles and caps of various sizes.
  2. Bottle caps of different sizes need no replacement of accessories, just simple adjustment.
  3. Bottle cap positioner, ensure consistency of direction of pump cap when outlet.
  4. Easy operation, convenient adjustment and low maintenance cost.
  5. The screw cap is divided into four groups, i.e. initial screw and complex screw. The size of the torque can be adjusted independently to ensure tightening, and the cap is equipped with a clutch device without damaging the cap too tightly.
  6. Two sets of clamping ring mechanism for bottles, so that high bottles or bottles with unstable standing can also be used.
  7. Conveyor, cap screwdriver and bottle clamping belt can be adjusted with different speeds, which makes them more suitable for bottle caps of different sizes.
  8. The whole machine is designed according to GMP requirements.


REASONS FOR CHOOSING US

1.Supply one stop station service for designing workshop, workshop layout, selecting machines and installation(one stop solution).

2. Professional in researching and developing, producing cosmetic machines.

3.Through the agency of South Korea, Japan, Italy,equipment brand, we have deposited leading technology and applied it to our products.

4.Excellent,Professional,Competitive products and good service are provided.

5.Quality Complete Cosmetics Equipment Solution Supplier.


ABOUT US

Guangzhou Cosmati Technology Co.,Ltd factory founded in 2009, have more than 12 years experience in cosmetic equipment design, research and development and manufacturing, we have established cooperative relations with many high-quality customers. Supply one stop station service for designing workshop, workshop layout, selecting machines and installation(one stop solution)Cosmati is always absorbing in new product researching and development, we can provide you excellent automatic production line and packing solution for cream, lotion, perfume and color cosmetic products. Our products sell well in America, Europe, Africa, Southeast Asia and the Middle East, and won the praise and trust from customers.
Our main products including Vacuum Homogenizing Emulsifier,mixer machine,cosmetic filling and capping machine,perfume filling machine,lip gloss filling machine ,mascara filling machine,lipstick filling machine and so on.

Excellent,Professional,Competitive products and good service are provided. Dedicate QC team is responsible for quality control from start producing to delivery to customers' side. Every product is carefully verified before delivery to customer, as well as detailed inspection record to provide accurate after-sales service.We have got D1,D2 grade pressure vessel manufacturing license which are issued by the national official.In 2015,we have cooperate with South Korea leading emulsifier company for technical and marketing,we can provide the high quality imported resource to cosmetic manufacturer.
We will continue to forward to international and intelligent, fighting to be the leading cosmetic, pharmaceutic and food equipment manufacturer in the world.


Factory profile
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0
Engineer case
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2
Full automatic capping machine with cap feeder
Trade show participation
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4
Packaging & shipping specifications
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5

FAQ

1. What is this automatic capping machine used for?
This machine is designed for automatic cap sorting, feeding, positioning and screw tightening on compatible bottles in continuous production.

2. Does the machine include an automatic cap feeder?
Yes. The supplied configuration includes an automatic cap feeding system, which helps orient and continuously deliver caps to the capping section.

3. What types of caps can this machine handle?
It is mainly suitable for compatible plastic screw caps and threaded closures within the applicable cap size range.

4. What cap diameter can the machine handle?
According to the supplied specification, the applicable cap diameter is approximately 20–55mm.

5. What bottle size is suitable for this machine?
The supplied specification lists an applicable bottle diameter of approximately 80–115mm.
