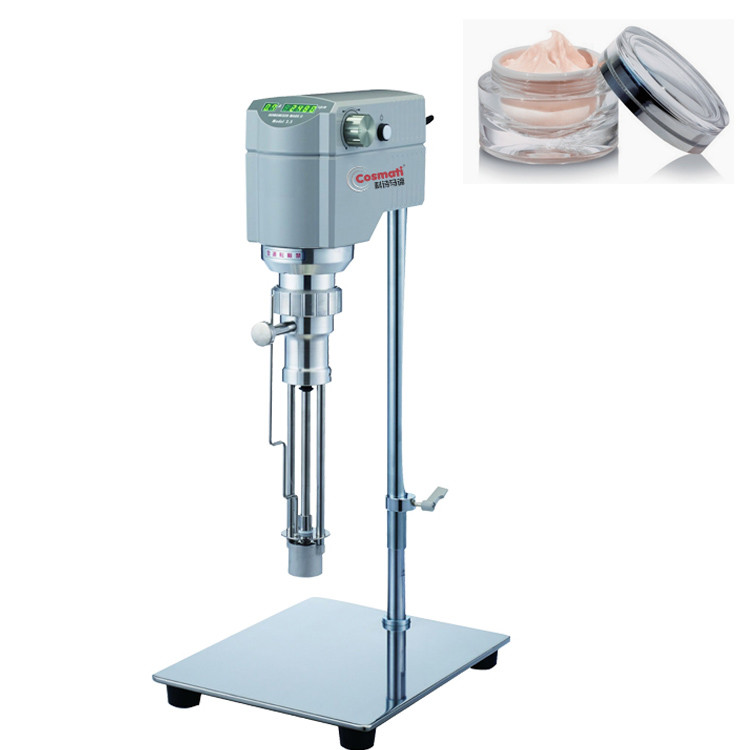

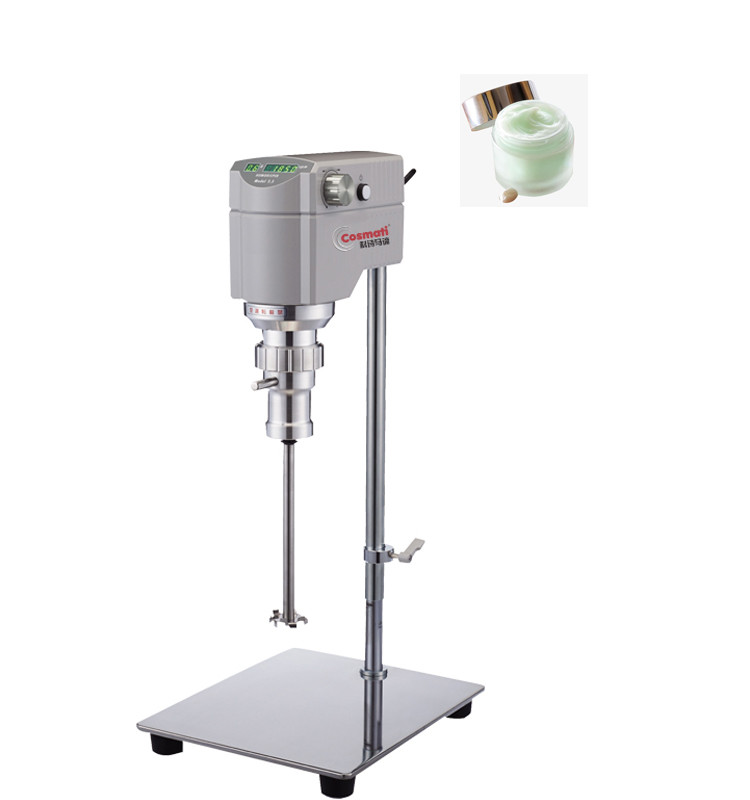

Laboratory Mini hand held homogenizer mixer
The main parameters
| Voltage |
AC 110V 50/60Hz single phase 15A
Power cord 1.5m plug: grounded 2P with converter (grounded 15A converter) rated current value: 4.9A
|
| Motor |
0.3kW, 1400-16000r/min |
| Mixer |
Homogenizing head
Speed: 140-16000r/mi,
Direction of rotation: forward, reverse
Processing capacity: ~ 3L (recommended container size φ145mm×225mm)
Material: SUS304*2 in contact with liquid
Rotor bearing: CAC502A*2
|
Dispersing head
Speed: 1400-8000r/min, forward rotation
Direction of rotation: forward, reverse
Processing capacity: ~ 5L
Material: SUS304, SUS329J1 in contact with liquid
|
| Control panel |
Install meter: ammeter, running meter, timer
Operating machine: RUN/STOP switch, speed control knob, forward and reverse switch, timing operation switch, timing setting switch
|
| G.W |
15kg |
| Advantages |
1. The motor adopts a newly developed brushless motor, no maintenance is required. The motor has a small sound and is most suitable for research rooms;
2. The maximum speed is 16000r/min. Data in different fields can be obtained from before. The correct data for scale-up can be obtained.
3. The feedback method is adopted to keep the speed constant even if the load changes;
4. Corresponding to a rich selection of mixing heads (a small amount of single tank, continuous type, vacuum type);
5. A temperature sensor can be installed through additional options;
6.Data recording (rotation speed, current, temperature) can be performed through additional options;
|
It is driven by the micro high power and high speed motor imported from Japan, It is suitable for mixing low to medium and high viscosity liquid in the laboratory, dispersing homogeneous particles in the liquid medium, breaking tissue cells, etc.
The machine is composed of high-speed motor, dispersive and homogeneous working head and base. The driving main engine runs stably, the working head is made of high-quality stainless steel, which is widely used in experiments.
Feature:
1.The newly-developed Brushless Motor(allows for speeds up to 16000r/Min)enables the user to obtain previously unattainable date.
2.No speed fluctuations caused by sudden increase in the load due to the feedback system.
3.By simply varying the mixing section,a wide variety of test can be performed.From very small batches to continuous type to vacuum,accurate scale-up is possible from the test results.
4.The new date logging functions for r/min,amperage and temperature are also available.
Company Profile:
We are a cosmetic machinery manufacturer which professional in researching and developing, producing cosmetic machines. Through the agency of South Korea, Japan, Italy,equipment brand, we have deposited leading technology and applied it to our products.We focus on color cosmetic fields and cosmetic fields and provide the complete set of solutions for your company.
Our main products including Vacuum mixer homogenizer,mixer machine,cosmetic filling machine,perfume filling machine,lip gloss filling machine ,mascara filling machine,lipstick filling machine and so on. We provide fair price with competitive products.
Excellent,Professional,Competitive products and good service are provided. Dedicate QC team is responsible for quality control from start producing to delivery to customers' side. Every product is carefully verified before delivery to customer, as well as detailed inspection record to provide accurate after-sales service.
After-Sales Service
Supply the following after-sale service:
1.Free training your technican in our workshop;
2.1 year wear parts are provided with machine;
3.Able to come on site for commissioning, visa cost, double journey airfare, food and accommodation local transporation on site for coming engineer will be charge by buyer;
4.Salary in charge for coming engineer is USD150/day;
5.Providing Cosmati via email and telephone for whole life of the machine.
Packaging & shipping specifications
FAQ
11. Can it be used for lotion production?
Yes. Lotion and other cosmetic emulsions are typical applications of this laboratory homogenizer.
12. Can it process conditioner or hair-care products?
Yes. According to the supplied product information, compatible conditioner and rinse formulations are suitable applications.
13. Can it process viscous fluids?
Yes. The supplied specification specifically lists viscous fluid as an application.
14. Is it suitable for extremely thick paste?
Very high-viscosity pastes should be evaluated first. Extremely thick materials may require a higher-power or specialized high-viscosity mixer.
15. Can this machine emulsify oil and water?
Yes. The high-speed homogenizing head can be used for compatible oil-water emulsification experiments such as creams and lotions.
