Product Description

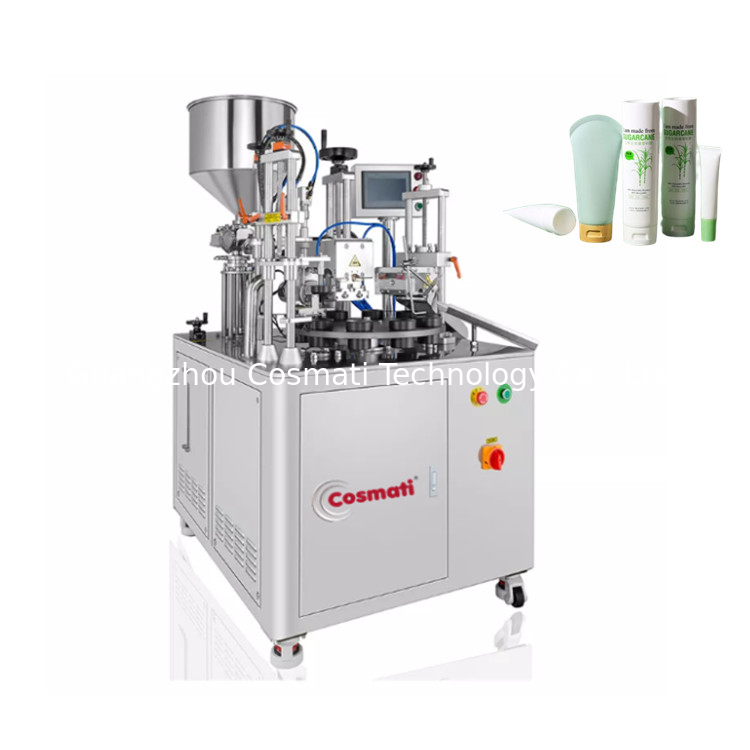

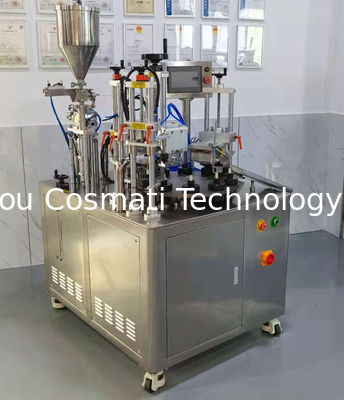

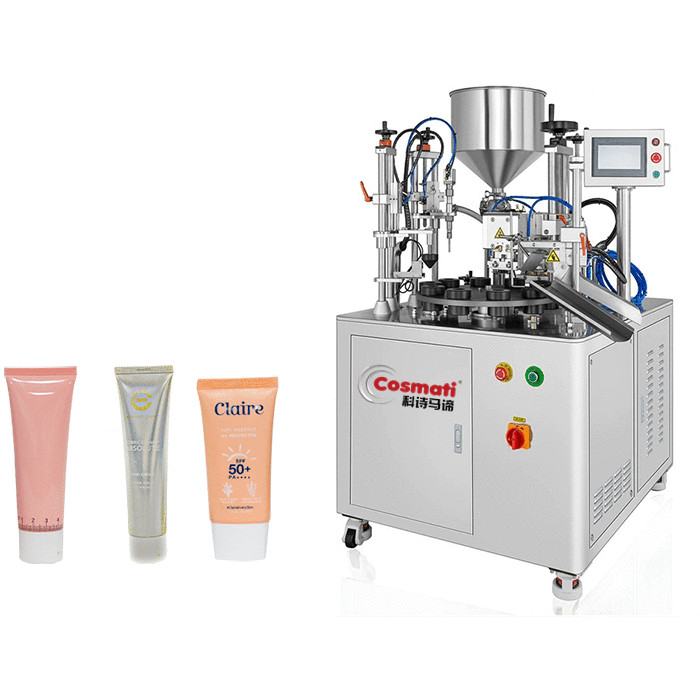

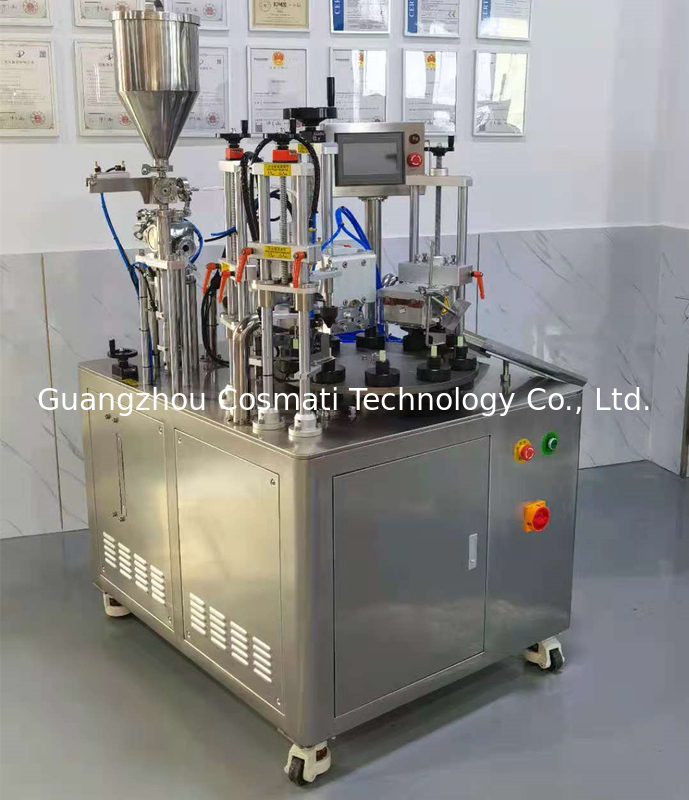

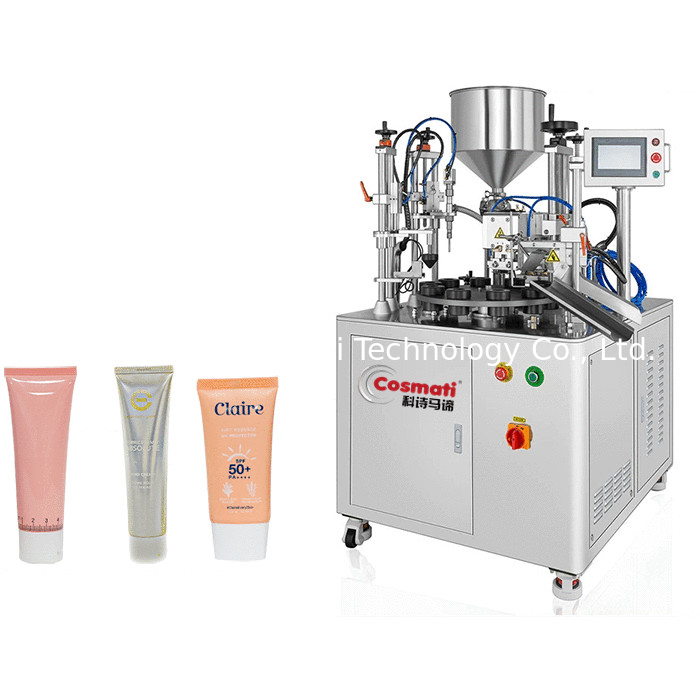

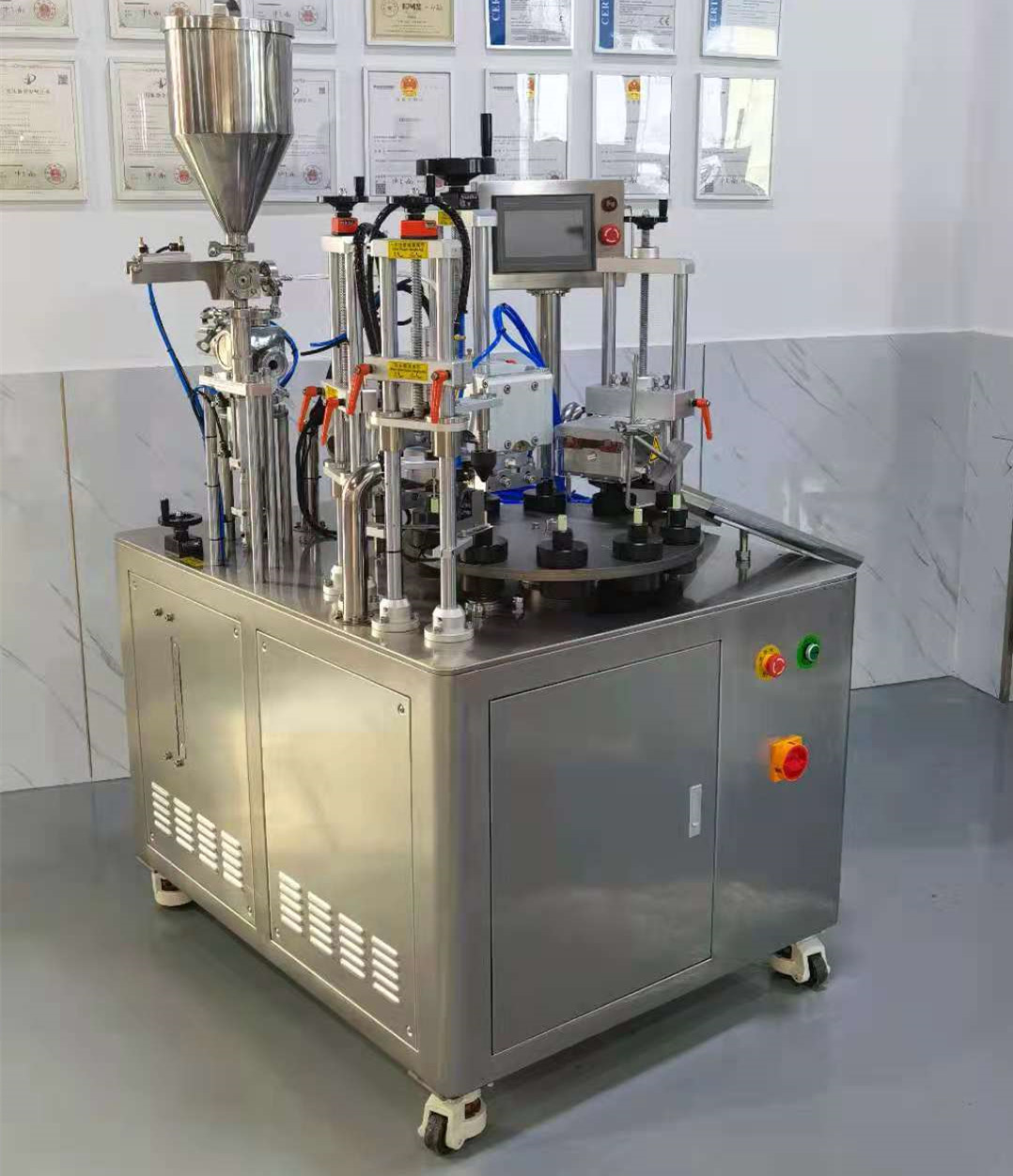

Semi automatic plastic tube filling and ultrasonic sealing machine for shampoo
Introduction
The soft tube filling and sealing machine is suitable for all kinds of plastic tubes, aluminum-plastic composite tubes, automatic filling and sealing, color coding, date printing, trimming and tube outlet, and is widely used in daily chemical, pharmaceutical and food industries.
Description
Features
*This machine manually completes a series of actions such as dropping the tube,automatic labeling, filling, sealing and printing, cutting the tail, and outputting the finished product;
*This machine is equipped with safety device, no tube no filling, no tube no tail sealing, tail cutting, overload protection;
*Suitable for filling sealing soft tubes, such as toothpaste, hand cream, eye cream, face cleanser, shampoo, hair dye, etc. It is an ideal equipment for cosmetic tube.
Flow
1. Automatic drop pipe: the plastic tube is placed in the collection tank, and the opening is placed outward. The tubes are
controlled by the swing mechanism to enter the drop tube channel one by one. The drop tube mechanism swings back and forth 90° to place the hose into the tube seat below to complete the drop tube action.
2. Automatic alignment: the turntable drives the hose to the alignment station, and the photoelectric switch is used to identify the alignment mark on the hose, so that all the hoses face the same direction.
3. Automatic filling: The filling part consists of filling head, material tank and other parts. The piston is driven by the pneumatic element to squeeze the material and pour the material into the lower hose. The filling volume can be controlled by controlling the extrusion time, from 20g to 250g.
4. Ultrasonic sealing: The plastic molecules are oscillated by ultrasonic waves and fused with each other to achieve the purpose of sealing, which can be sealed under different conditions.

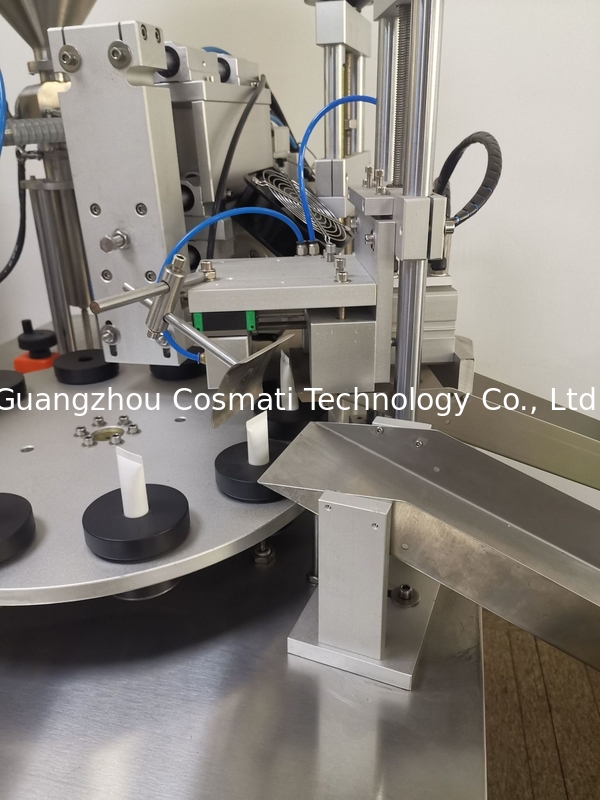

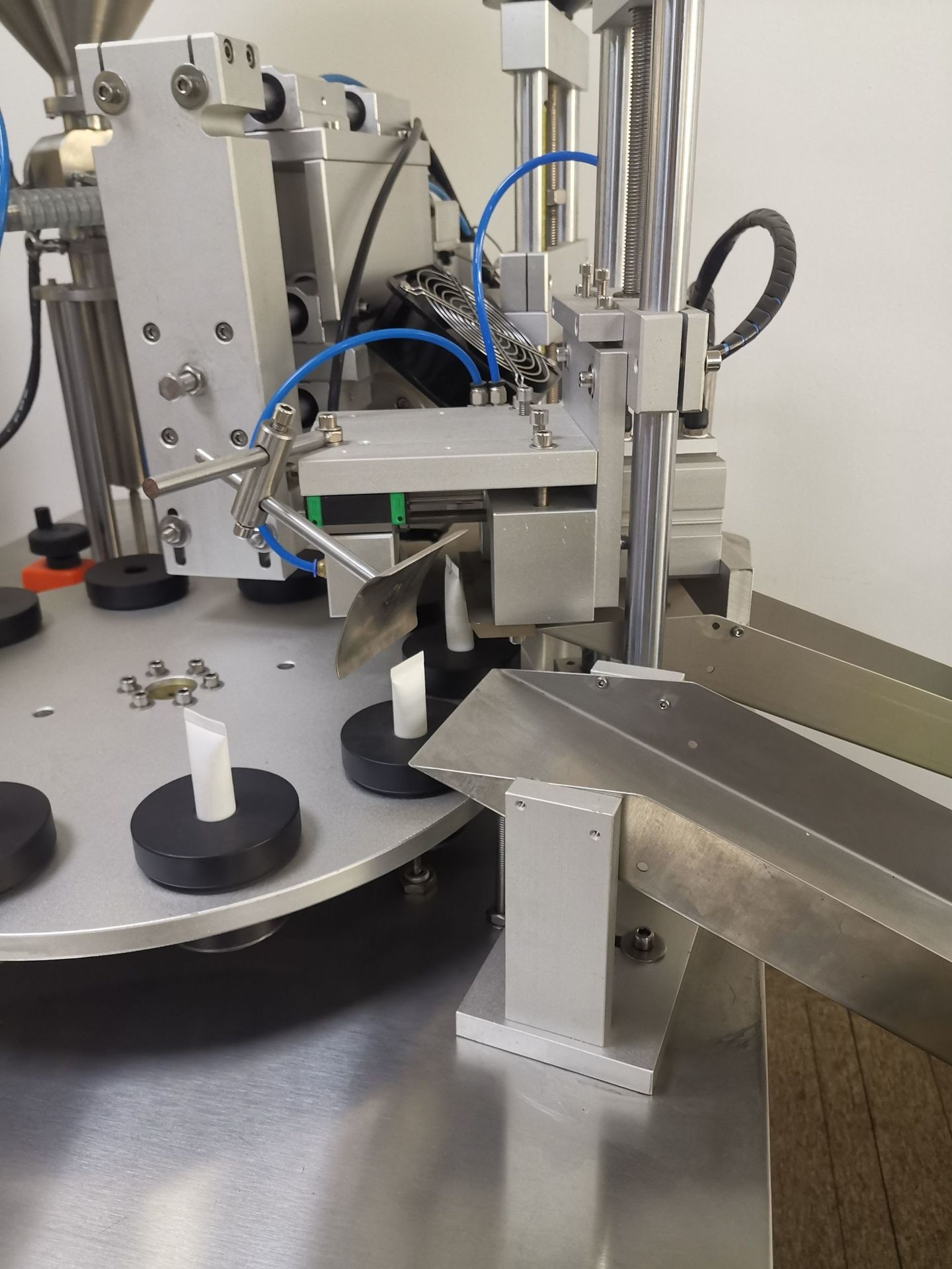

5. Removal of waste edges: automatic edge trimming, cutting off excess waste edges at the tail of the hose after sealing, making the tail smoother, and can cut out a variety of tails of different shapes or lines to meet the design requirements.
Technical parameter
|
Capacity
|
Dimension(mm)
|
Power supply
|
Sealing diameter
|
Filling accuracy
|
|
20-25 tubes/min.
|
L900*W1100*H1600mm
|
220v/380v, 2.6KW
|
16-50mm
|
±1%
|
|
Filling range
|
Weight
|
Hopper volume
|
Sealing height
|
Body material
|
6-60ml/10-120ml/
25-250ml(Optional)
|
380KG
|
40L
|
50-250mm
|
SUS304
|
Structure

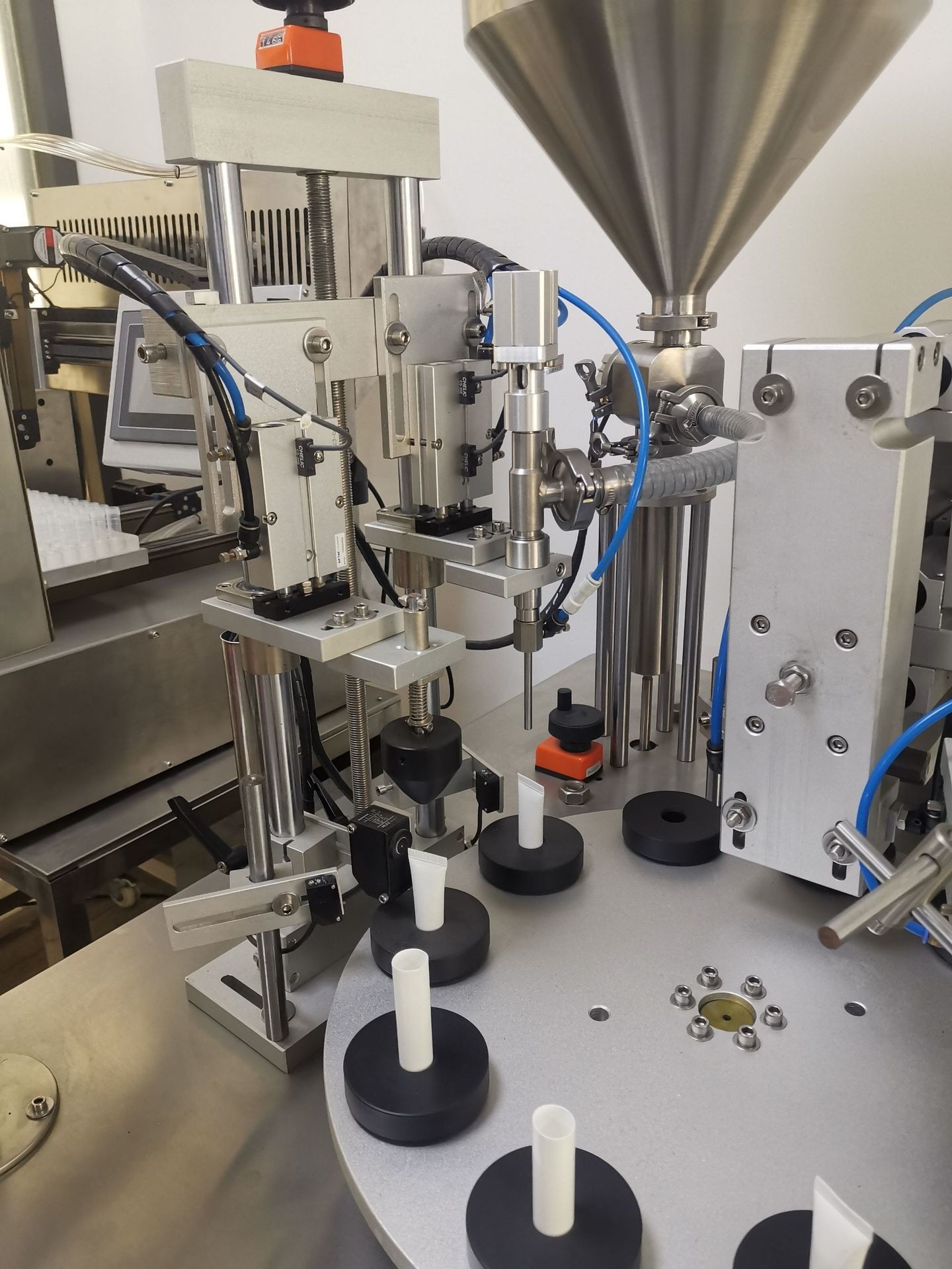

Detailed pictures
Application
FAQ
What does this company do? Why should I choose you?
Cosmati is committed to providing the best customer service and quality to your product needs. We have been founded for 15 years as a manufacturer of cosmetic machinery. The primary focus of our company is manufacturing the best machine as an excellent and super professional supplier by providing complete product line support from research.
What is the minimum order/MOQs on my product?
Here at Cosmati, we try to be assessable to both small and higher-volume mass production clients. To keep our low cost of production, we typically keep a 1-pcs order minimum. Ordering larger amounts will be the most cost-effective.
However, we are flexible. If you ordered more than one set product with us, the total price can be lowered.
Once I am satisfied with my product, how long does manufacturing it take?
Once you are completely happy with the product that you have decided on, we will start manufacturing right away. This will take about 30-45 days normally. Depending on the production department.
How much is each product?
Each customer we take has very unique and specific requirements to their products. Depending on what our client is looking for in product amount, capacity, custom manufacturing, voltage, and packaging, the cost varies.
How can I customize my machine?
Our innovative and advanced team will be able to customize your product however you desire. We are capable of making the voltage, volume, and logo easily. But the production time is not fixed.
How do you arrange the shipment?
We have many freight forwarders who cooperated with us for a long time, so their price and service are competitive. But it will be better if you choose your own forwarder.
