Product Description

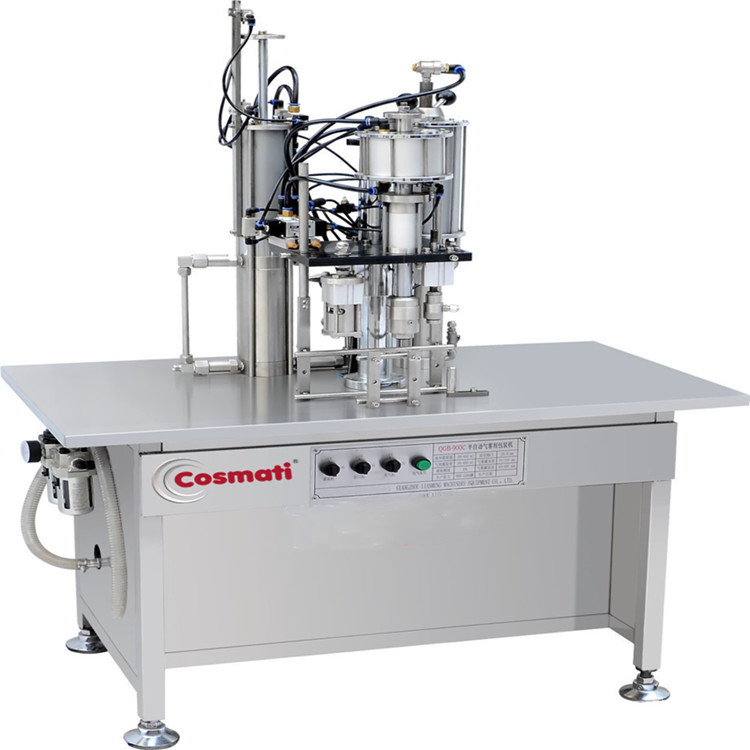

Semi-automatic Oxygen Gas Fresh Air spray paint aerosol cans filling machine
Technological process:
Manual Bottling --- Single-head Inflatable Tapping --- Single-head Filling
Product Introduction:
1. The machine is an efficient filling equipment for aerosols binary packaging products. It has beautiful appearance, programmable control of micro-computer
(PLC) and photoelectric sensor.
2. The machine is a new type equipment independently researched by the company. It combines a sealing filling head and a forced filling head on a table to save land.
3. Linear screw pushing bottle system is used instead of the original transmission. Semi-automatic and automatic modes can be selected during operation of the
equipment, which is flexible, efficient and labor-saving.
4. The machine fills the valve with bag with propellant or compressed air at the same time, and then injects liquid material into the bag with high pressure.So that
the raw material can be completely isolated from the tank, which solves the problem that the raw material corrodes the tank or gas-liquid cannot be mixed.
5. Imported parts are used as the main seals to ensure sealing quality, stable operation of equipment and low failure.
Introduction:
Product number: CM-EY-QWJ
Product Name: Binary Aerosol Filler
Product Series: Aerosol Series
Operating mode: semi-automatic
Technical Parameter:
Filling range: 30-300ml
Filling accuracy: ≤± 1%
Sealing accuracy: ≤ 3%
Production speed:700-1000pcs/ h
Applicable valve: 1 " Applicable aerosol tank: Φ 30-65mm
Working pressure: 0.5-0.7 MPa
Maximum air consumption: 0.6m ³/ min
Overall dimension (mm): 1000 *600 * 1600
Weight: 245kg
Product advantages:
1. Touch screen control
2. Filling and sealing suitable for various products
3. Material is not easy to react with tank
Features
1. The machine integrates compressed air (or N2) filling and sealing with touchscreen + PLC program control before filling the raw material.
2. It is especially suitable for filling water-based aerosol products.
3. It has the advantages of fast speed, convenient operation, accurate measurement, good sealing air tightness and arbitrary adjustment of pressure and pressure.

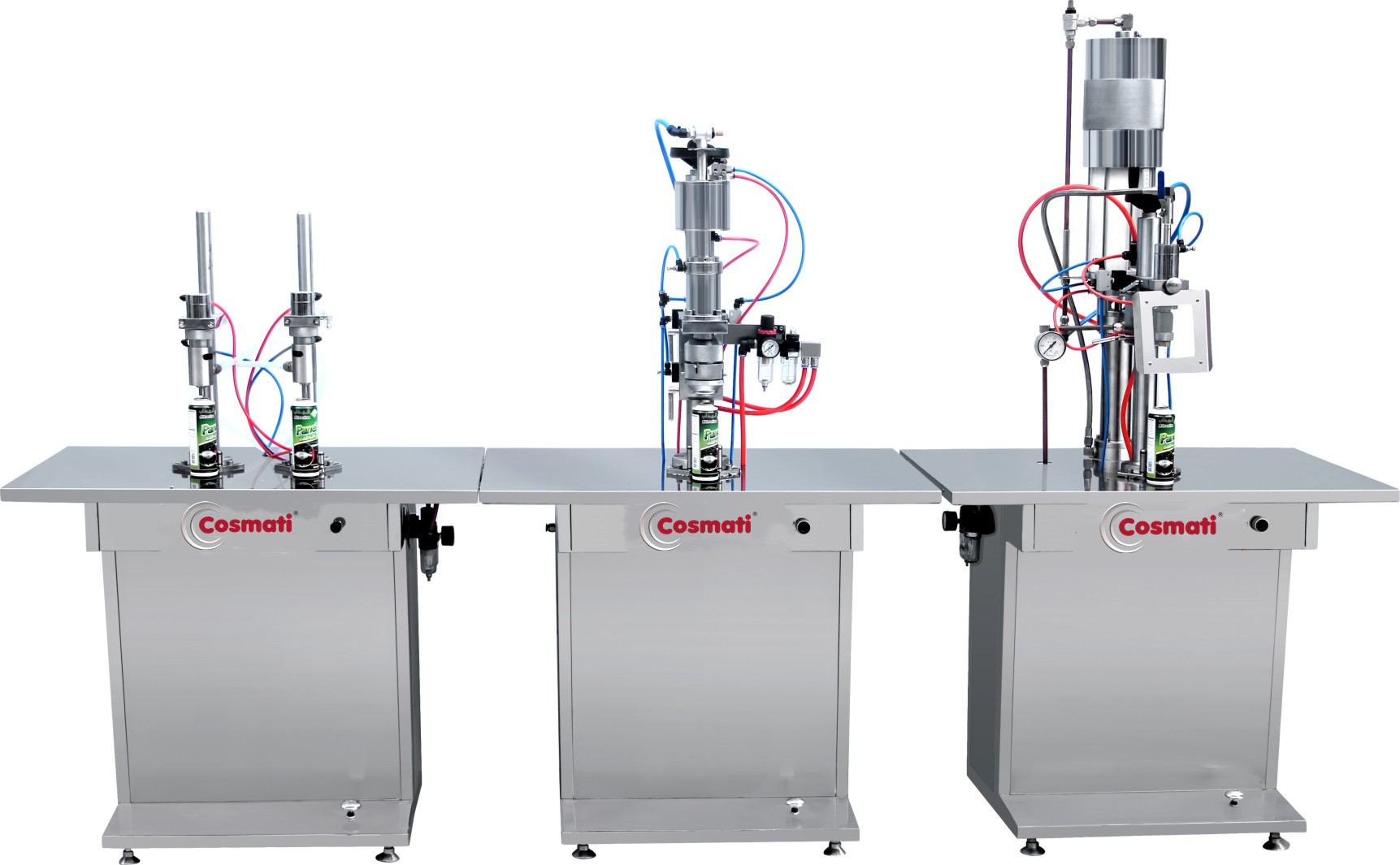

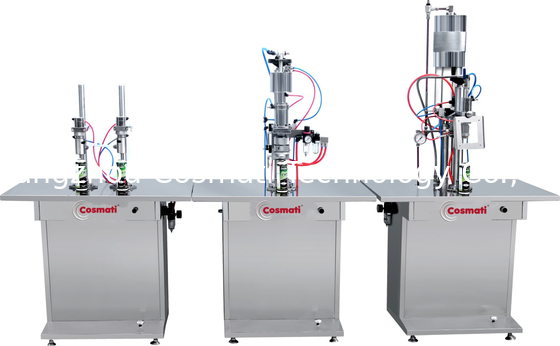

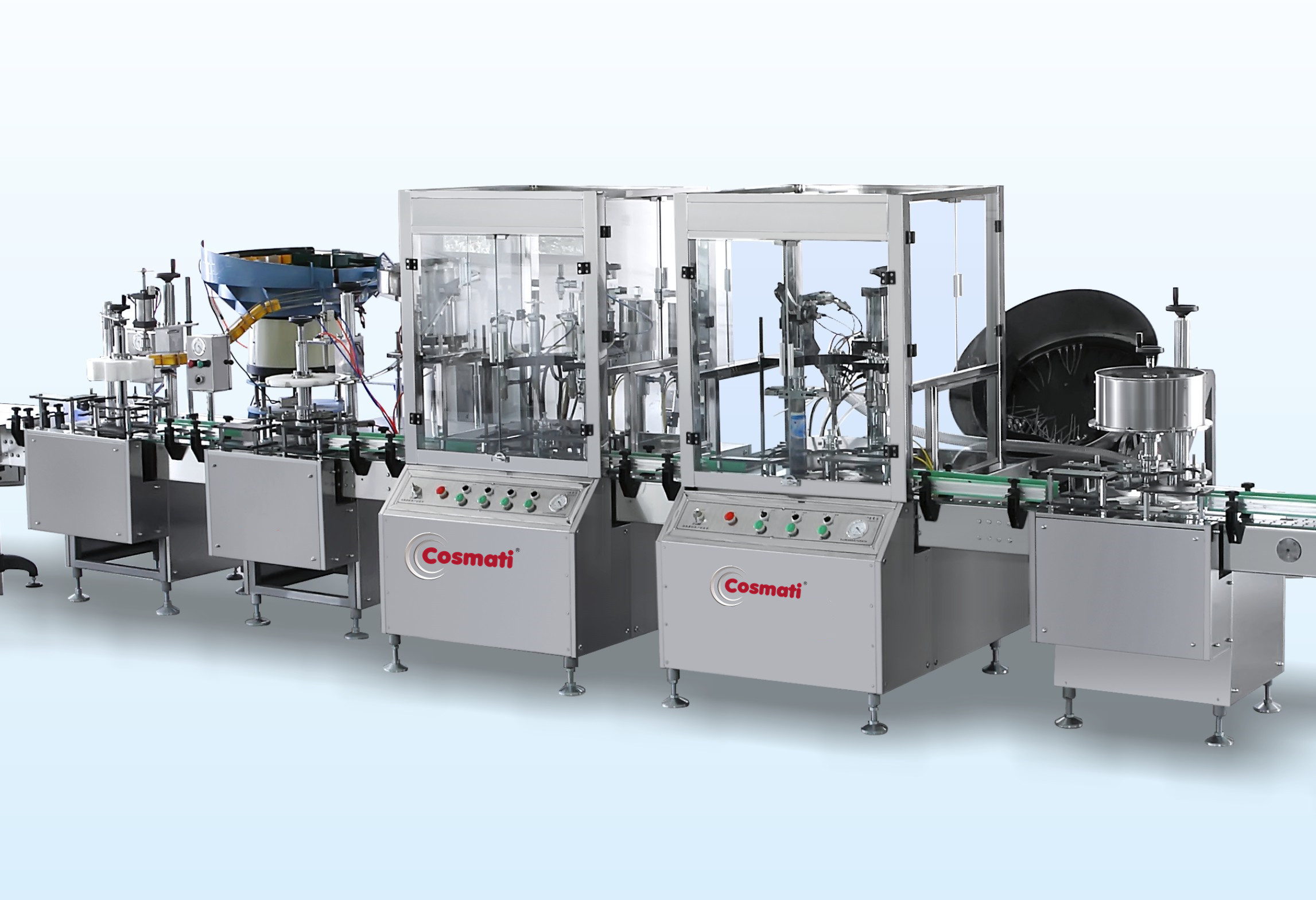

Our Main Products:
Company Profile:
We are a cosmetic machinery manufacturer which professional in researching and developing, producing cosmetic machines. Through the agency of South Korea, Japan, Italy,equipment brand, we have deposited leading technology and applied it to our products.We focus on color cosmetic fields and cosmetic fields and provide the complete set of solutions for your company.
Our main products including Vacuum mixer homogenizer,mixer machine,cosmetic filling machine,perfume filling machine,lip gloss filling machine ,mascara filling machine,lipstick filling machine and so on.
We provide fair price with competitive products. Excellent,Professional,Competitive products and good service are provided. Dedicate QC team is responsible for quality control from start producing to delivery to customers' side. Every product is carefully verified before delivery to customer, as well as detailed inspection record to provide accurate after-sales service.
Our Main Markets:
FAQ
Q: How to order?
A: We are available via email, please feel free to send us your requests. It will be nice if you can tell us details of your products, such as product name, product picture, valve size, can height&diameter, etc. If needed, turnkey solution will be provided to you.
Q: Can I visit your factory?
A: Welcome to visit our factory. Our factory is in Guangzhou City, Guangdong Province. There is an international airport near here. Therefore, it is very convenient for worldwide customers to visit our factory.
Q: What's your regular packing?
A: Products are usually packed in plastic bag - pallet - wooden case. Customized packing is available.
Q: What about after sale service?
A:Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.When machine has problem, We will solve basic questions by telephone, email, whatsapp, wechat and video call.
Customers showing us the picture or video of the problem. If the problem can be easily solved , we will send you solution by video or pictures. If the problem out of your control, we will arrange engineer to your factory.
Q:How can you control the quality and delivery?
A:All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise that our wooden packaging is strong enough and safety for long delivery .
Q:How about warranty and spare parts?
A:We provide 1 year warranty and enough spare parts for the machine,and most of the parts can be found in local market also,also you can buy from us if all the parts that over than 1 year warranty.
