Semi automatic cosmetic bottle air cleaning machine
Contact Person : Hanson He
Phone Number : 008613822105835
WhatsApp : +8613822105835
Minimum Order Quantity : | 1 set | Packaging Details : | Wooden case |
---|---|---|---|
Delivery Time : | 5-7 days | Payment Terms : | L/C, T/T |
Supply Ability : | 20 sets |
Place of Origin: | Guangdong,China | Brand Name: | Cosmati |
---|---|---|---|
Certification: | CE | Model Number: | CM-QWJ-B |
Detail Information |
|||
Product Name: | Semi Automatic Manual Air Freshener Body Spray Can Aerosol Filling Machine | Keyword: | Aerosol Cans Filling Machine |
---|---|---|---|
Automatic Grade: | Semi-automatic | Key Selling Points: | High Productivity |
Application: | Chemical, Pharmaceutical,Medical | Packing: | Wood Case |
Usage: | Aerosol Spray Filling | Voltage: | 220V |
Working Pressure: | 0.5-0.7 MPa |
Product Description

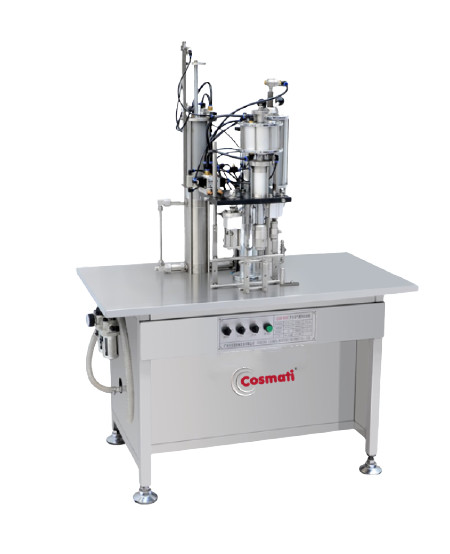

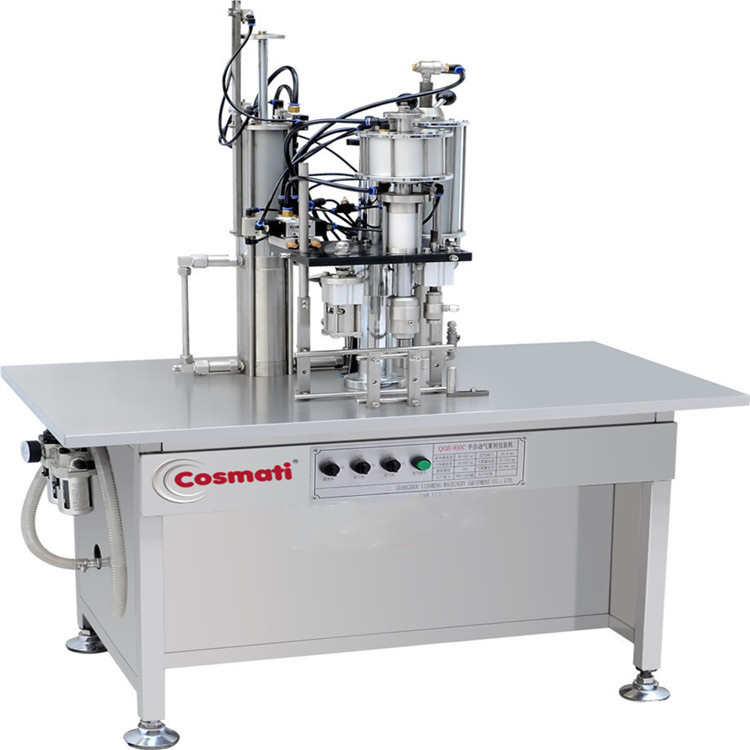

Semi Automatic Manual Air Freshener Body Spray Can Aerosol Filling Machine
Details:
Introduction:
Product number: CM-QWJ-B
Product Name: Three-in-one Aerosol Filler
Product Series: Aerosol Series
Operation mode: automation
Product advantages:
1. Fast speed, high accuracy, good stability, time and effort saving
2. All actions can be completed at the same time by only one person operating the pedal valve once.
Technical parameters:
Model | CM-AFM-01 | |
Sealing diameter(mm) | Ф26.5-Ф27.5 | |
Sealing depth(mm) | 5.0-6.0 | |
Applicable valve | 1” | |
Applicable aerosol cans | Height(mm) | 80-315mm |
Diameter(mm) | 35-70mm | |
Maximum liquid filling volume | 450ml | |
Liquid refilling accuracy | ≤±1.0% | |
Maximum filling volume of propellant | 450ml | |
Propellant repeat filling accuracy | ≤±1.0% | |
Working pressure (MPa) | 0.50-0.70MPa | |
Maximum air consumption | 0.6m3/min | |
Production capacity | 800-1200 cans/hour | |
Dimensions (mm) | 1000×600×1600 | |
Weight (kg) | 240 |
Product characteristics:
1. The machine is integrated from the original semi-automatic aerosol filling machine through improvement, optimization and integration.
2. Install three semi-automatic filling, sealing and filling machines on one workbench.
3. All actions can be accomplished simultaneously by one person at a time operating the pedal valve.
4.Fast speed, high accuracy, good stability and time-saving are ideal choices for small and medium-sized aerosol manufacturers.
5. Suitable for filling various media, such as thin liquid (kerosene), viscous liquid (face wash, polyurethane foaming agent).
OUR MAIN PRODUCTS:
|
![]() |
|
Mixing equipment | Vacuum homogenization emulsifier | Labeling machine |
Inquiry Now | Inquiry Now | Inquiry Now |
|
|
![]() |
Liquid paste filling machine | Digital small liquid filling machine | Aerosol filling machine |
Inquiry Now | Inquiry Now | Inquiry Now |
![]() |
![]() |
![]() |
Perfume filling machine | Cosmetic powder press machine | Grinding machine |
Inquiry Now | Inquiry Now | Inquiry Now |
Application
Our Main Markets:
Q: How to order?
A: We are available via email, please feel free to send us your requests. It will be nice if you can tell us details of your products, such as product name, product picture, valve size, can height&diameter, etc. If needed, turnkey solution will be provided to you.
Q: Can I visit your factory?
A: Welcome to visit our factory. Our factory is in Guangzhou City, Guangdong Province. There is an international airport near here. Therefore, it is very convenient for worldwide customers to visit our factory.
Q: What's your regular packing?
A: Products are usually packed in plastic bag - pallet - wooden case. Customized packing is available.
Q: What about after sale service?
A:Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.When machine has problem, We will solve basic questions by telephone, email, whatsapp, wechat and video call.
Customers showing us the picture or video of the problem. If the problem can be easily solved , we will send you solution by video or pictures. If the problem out of your control, we will arrange engineer to your factory.
Q:How can you control the quality and delivery?
A:All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise that our wooden packaging is strong enough and safety for long delivery .
Q:How about warranty and spare parts?
A:We provide 1 year warranty and enough spare parts for the machine,and most of the parts can be found in local market also,also you can buy from us if all the parts that over than 1 year warranty.
