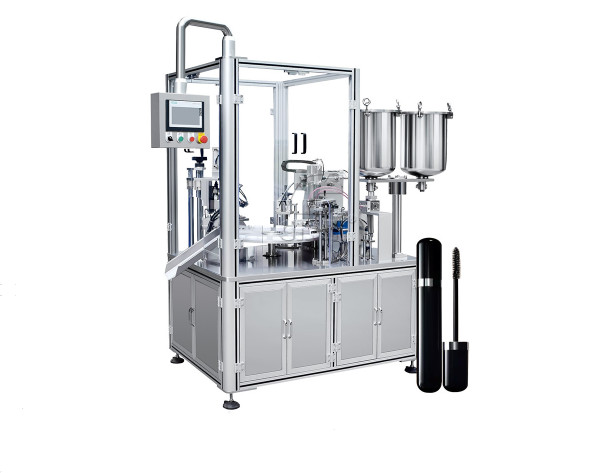

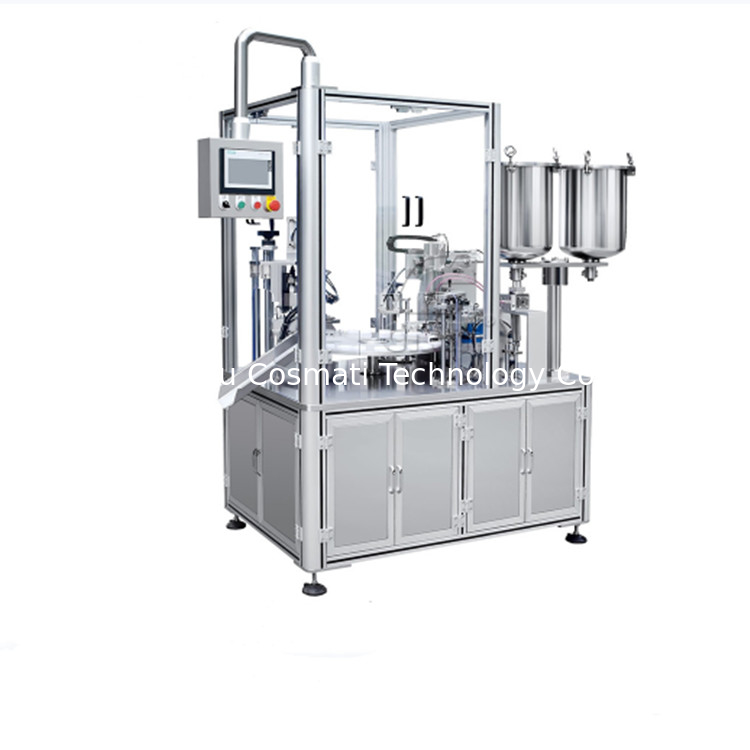

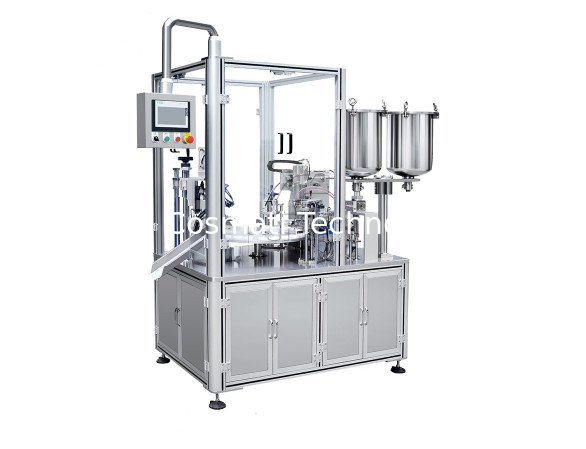

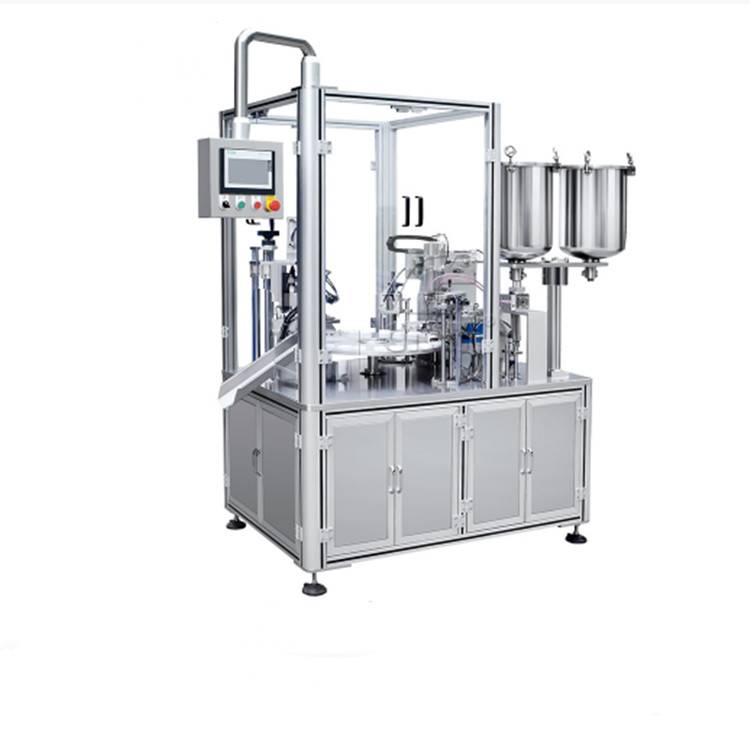

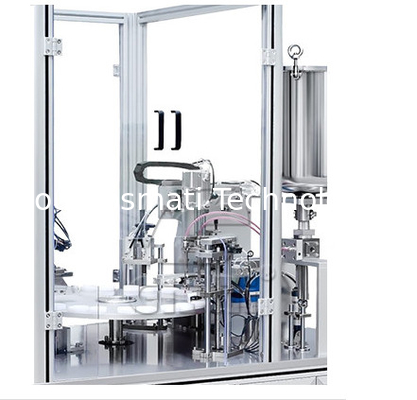

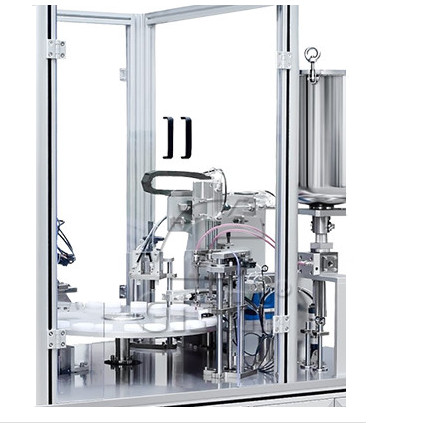

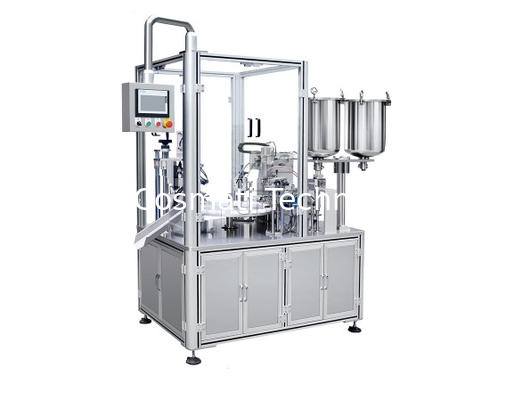

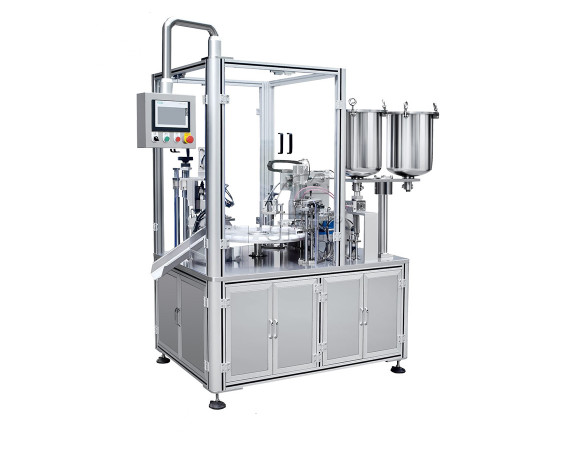

PLC Control Semi-Auto Rotary Type mascara/lipgloss filling machine

Contact Now

PLC Control Semi-Auto Rotary Type mascara/lipgloss filling machine

Minimum Order Quantity :	1 set	Packaging Details :	Polywood case
Delivery Time :	30 working days	Payment Terms :	L/C, T/T
Supply Ability :	20 set

Place of Origin:	Guangdong,China	Brand Name:	Cosmati
Certification:	CE	Model Number:	CM-M/L-02

Detail Information
Product Name:	PLC Control Semi-Auto Rotary Type Mascara/lipgloss Filling Machine	Keywords:	Lipgloss Filling Machine
Dimension:	12008002080mm	Usage:	Filling Lipgloss
Power:	7KW	Weight:	700KG
Cleaning Time:	30 Min	Air Supply:	0.6-0.8MPA, ≥ 800L/min
Output:	28-36pcs/min.

Product Description

PLC Control Semi-Auto Rotary Type mascara/lipgloss filling machine

Product Description

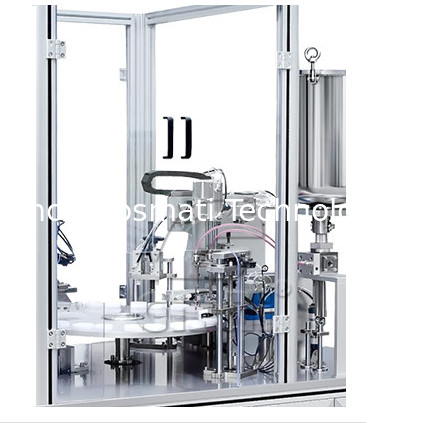

PLC Control Semi-Auto Rotary Type mascara/lipgloss filling machine 0

This machine is a kind of semi-auto filling machine for mascara and lipgloss.

The process section is including auto filling,automatic wipers inserting,brush inserting and capping device.

Technical Parameter:

Outer dimension

1200*800*2080mm

Power consumption

7kw

Voltage

AC220V,1Ψ,50/60Hz

Air supply

0.6-0.8mpa,≥800L/min

Output

28-36pcs/min

Cleaning time

30min

Weight

700kgs

Application

Mascara,Lipgloss

Features:

1.With auto wipers input,wipers checking,and capping function.Also it has option on pragram to set functions.

2.Mateial tank is 15 L,with heating ,mixing,and pressuring functions.

3.This machine adopts piston filling system,filling parameter is able to set on touch screen.

4.This machine is made from servo motor driven,materials sucking,lifting and capping system.

5.Wipers are fed through vibration table.

6.With weigh checking device to remove over weight products and not enough product.

Process

1.Manually feeding container

2.Auto filling with two nozzles

3.Auto wipers inserting

4.Manual brush cap feeding

5.Auto capping

6.Auto push finished product to conveyor

7.Auto transfer to weigh checker

8.Auto weigh checking

Application:
