Product Description

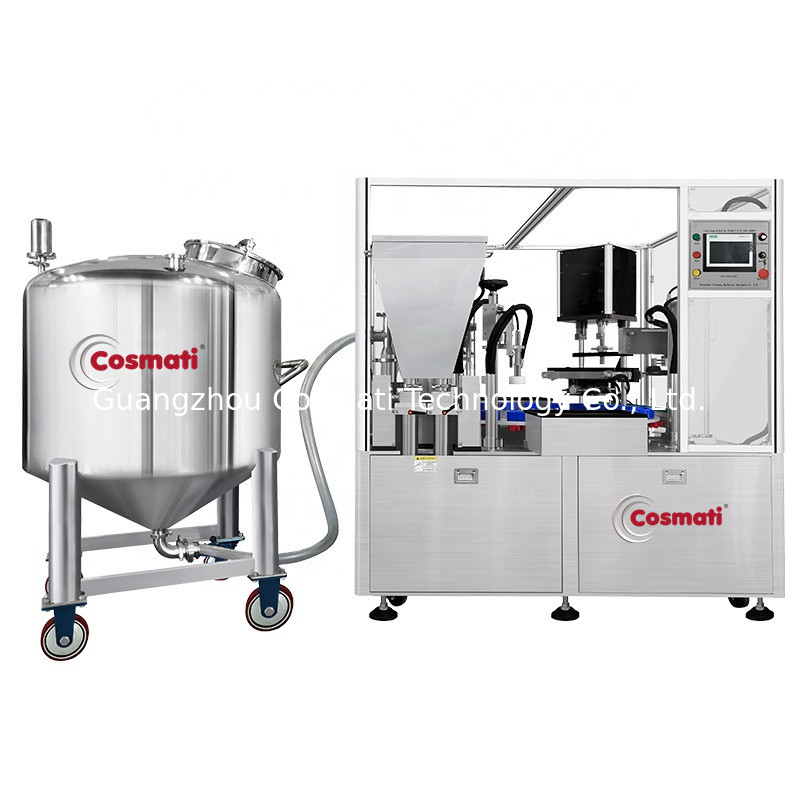

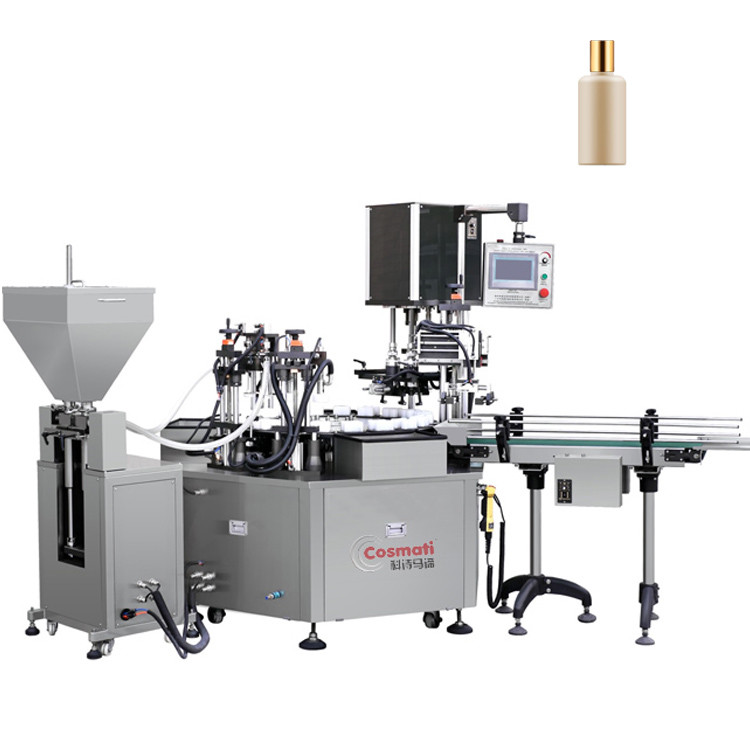

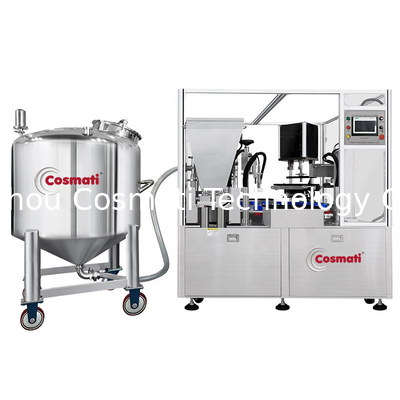

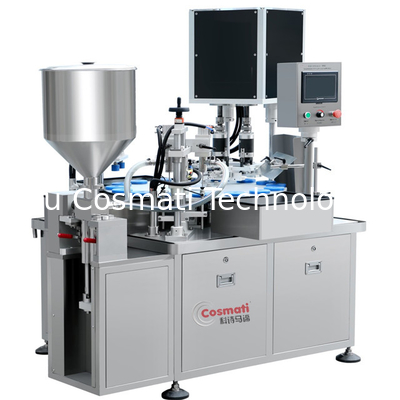

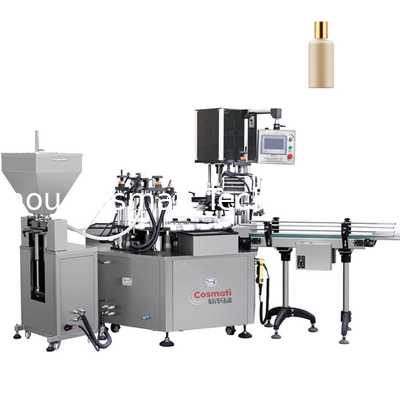

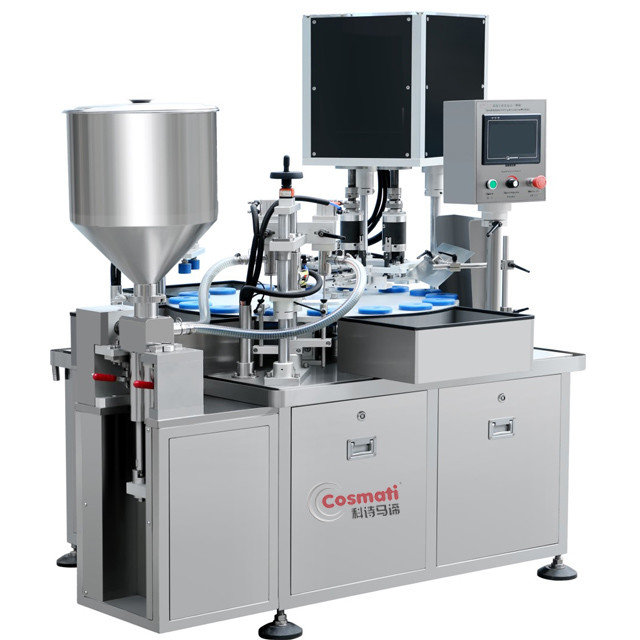

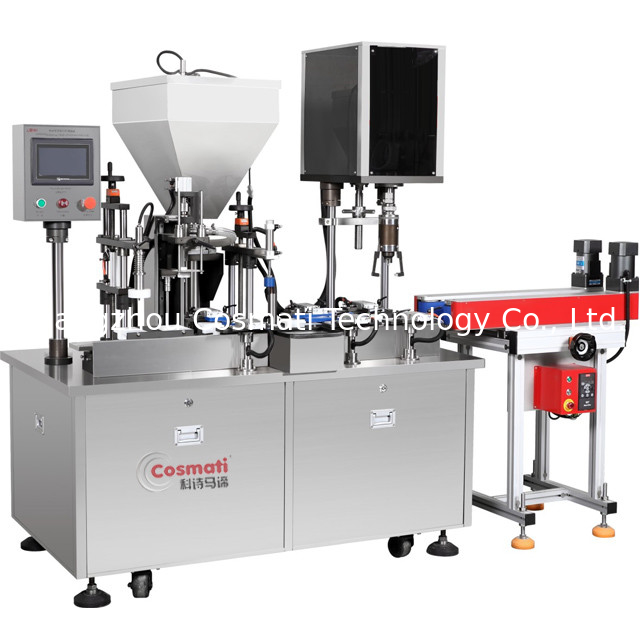

5-250ml Shampoo, lotion, cream, toner, cosmetic liquid filling capping machine
Scope of application:
Suitable for filling & capping high/low viscosity product with small volume,toner, emulsion, nourishing
cream, shampoo etc, and also liquid in the food and pharmacy industries.
Feature:
1, It is suitable for filling and capping high/low viscosity products with low volume.
2, It adopts servo piston quantitive filling, with accurate filling.
3, It adopts double program filling, capping and outlet. (double heads)
4, The filling part is easy to assemble and disassemble, with easy adjustment. It only takes about 20 minutes to change the parts.
5, It is suitable for any spiral type cap, with adjustable capping system.6,Adopts sanitary stainless steel, clean and sanitary.
Technical Parameters
|
No
|
Name
|
Specification
|
|
1
|
Filling Range:
|
5-250ml
|
|
2
|
Filling Speed:
|
20-30 bottles per minute
|
|
3
|
Air Cleaning:
|
Static elimination air cleaning, vacuum suction
|
|
4
|
Nozzles Lifting:
|
Controlled Cylinder
|
|
5
|
Filling System:
|
Panasonic Motor
|
|
6
|
Capping System:
|
Panasonic Motor
|
|
7
|
Finished Production Output:
|
SMC Manipulator Clamping Type
|
|
8
|
Hopper:
|
40L (can be customized)
|
|
9
|
Air Pressure:
|
0.5Mpa, 150L/min dried air
|
|
10
|
Voltage: 220V
|
Can be customized
|
Company Profile:
We are a cosmetic machinery manufacturer which professional in researching and developing, producing cosmetic machines. Through the agency of South Korea, Japan, Italy,equipment brand, we have deposited leading technology and applied it to our products.We focus on color cosmetic fields and cosmetic fields and provide the complete set of solutions for your company.
Our main products including Vacuum mixer homogenizer,mixer machine,cosmetic filling machine,perfume filling machine,lip gloss filling machine ,mascara filling machine,lipstick filling machine and so on. We provide fair price with competitive products.
Excellent,Professional,Competitive products and good service are provided. Dedicate QC team is responsible for quality control from start producing to delivery to customers' side. Every product is carefully verified before delivery to customer, as well as detailed inspection record to provide accurate after-sales service.
FAQ:
1.Why choose this machine?
1. Suitable for filling cream, lotion, honey, syrup, ointment, etc.
2. with air cleaning---filling---capping---automatic pick up for finished bottles, other devices like inside caps pressing can be addded.
3. with anti-static system for air cleaning in case of any dust or impurities.
4. with servo motor filling type to reach high filling accuracy, and removing foam-causing while filling.
5. when filling liquid products, the machine can automatic self-sucking the products;
6. the hopper tank is with liquid level teste.
7. capping part is with soft silicone for protecting caps outside without any scars.
8. all packing process can be finished in one machine, save spaces and labors.
9. whole machine is with braker and wheels, it is easy to move.
10. whole machine adopts sanitary stainless steel.
Q2: How does your factory do regarding quality control?
A2: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.
Q3: What’s the guarantee if we purchase from you?
A3: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any wearing part be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free.
