China Factory Supplied Top Quality Perfume Packing Machines Perfume filling Machine
China Factory Supplied Top Quality Perfume Packing Machines Perfume filling Machine
Contact Now

China Factory Supplied Top Quality Perfume Packing Machines Perfume filling Machine

Minimum Order Quantity : 1 Set Price : USD 3000-6000
Packaging Details : Polywood case Delivery Time : 20-25 working days per month
Payment Terms : T/T, L/C, Western Union Supply Ability : 40 Sets/Month
Place of Origin: Guangzhou Brand Name: COSMATI
Certification: CE Model Number: CM-FM

Detail Information
Products Name: China Factory Supplied Top Quality Perfume Packing Machines Perfume Filling Machine Packaging Type:: Bottles
Dimension(L*W*H):: 2830x1510x1400mm Machinery Capacity:: 2000
Filling Material:: Oil, Water, Liquid,lotion,cream Function:: Perfume Filling And Capping Machine
Keywords:: Perfume Bottle Filling Machine Voltage:: 220V
Weight:: 300 KGS Packaging Material:: Glass Bottles
Core Components:: Gear, Motor, Pump

Product Description





perfum packing machines

perfum packing machines





00()

Introduction

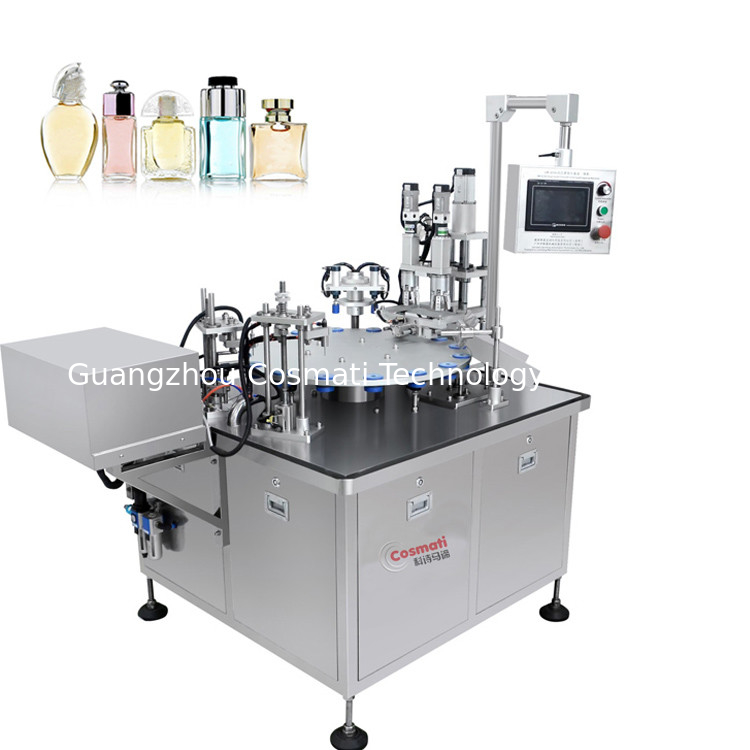

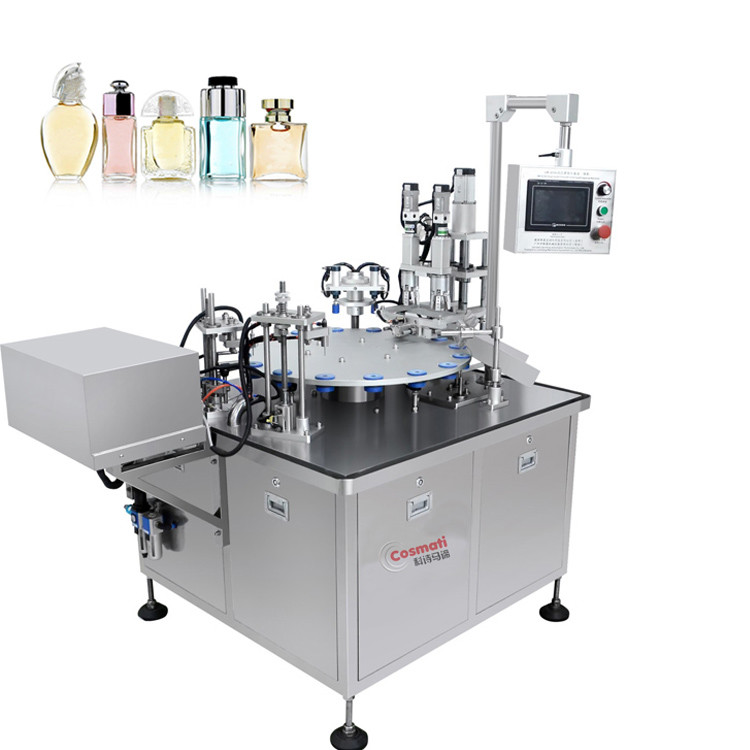

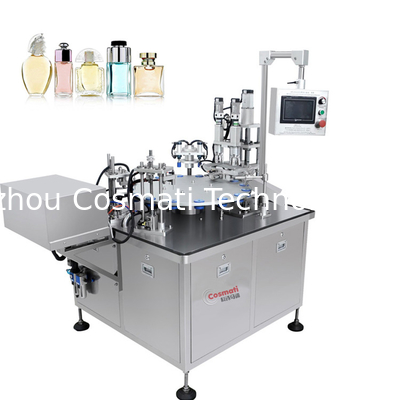

Safety and efficient four head rotary semi automatic bottle perfume filling machine, pneumatic perfume filler is used for filling floral water, perfume and other water-based materials. The machine adopts negative pressure ,suit for fill cologne,and fixed liquid surface type filling. Explosion-proof type products can be provided according to user requirements.


This machine adopts vacuum type filling and fixed liquid level type filling, thus avoiding the different levels caused by the thickness of each container bottom.
The machine is with 10 heads filling, and rotary type filling, which has speeded up and meanwhile saved a lot of spaces.
The vacuum perfume filling machine also is equipped with a recycle system, which saves a lot of time and labor tensity.
Negative pressure suction fluid filling,product filling quantity to liquid level height is the metering method
Equipment with casters,convenient to move
The contact part adopt 316L stainless steel,table with SS 304
Suitable for glass bottle and the plastic bottle which will not easy out of shape after vacuum.



Technical Parameters:
Production Capacity
20-40 bottles/min
Filling Volume
5-1000ml
Suitable bottle height
≤250mm
Suitable bottle diameter
≤90mm
Application of Bottle Diameter
≥5mm
Supply Voltage
3/N AC 380V/220V
Power Consumption
0.55KW 0.75KW ( explosion proof Noise 70dB(A)
Related Products:China Factory Supplied Top Quality Perfume Packing Machines Perfume filling Machine 4
Successful Project
perfum packing machines
perfum packing machines



perfum packing machines



China Factory Supplied Top Quality Perfume Packing Machines Perfume filling Machine 8

perfum packing machines

perfum packing machines



China Factory Supplied Top Quality Perfume Packing Machines Perfume filling Machine 11

After-Sales Service


Supply the following after-sale service:

1.Free training your technican in our workshop;

2.1 year wear parts are provided with machine;

3.Able to come on site for commissioning, visa cost, double journey airfare, food and

accommodation local transporation on site for coming engineer will be charge by

buyer;

4.Salary in charge for coming engineer is USD150/day;

5.Providing Cosmati via email and telephone for whole life of the machine.
